Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Length: | 15cm | OE-No.: | 282080-1 |
|---|---|---|---|
| Pin: | 2 Pin | Gender: | Female |
| Color: | Black | Style: | Wire Harness |
| Sealed/Unsealed: | Sealed | Application: | For Car Lamp |
| HS Code: | 8536909000 | Material: | PBT |
| Highlight: | automotive wiring harness,automotive wire connectors,car wiring harness |
||

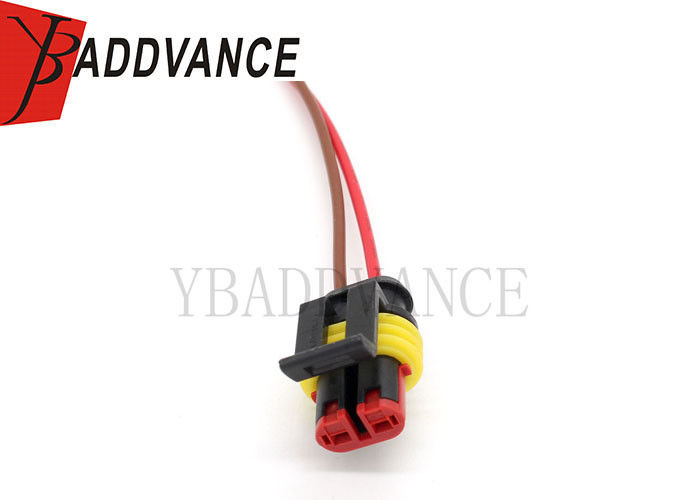

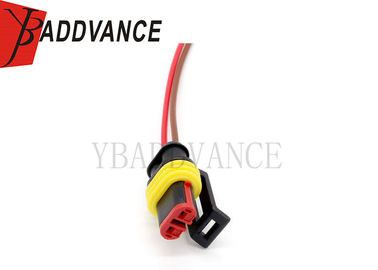

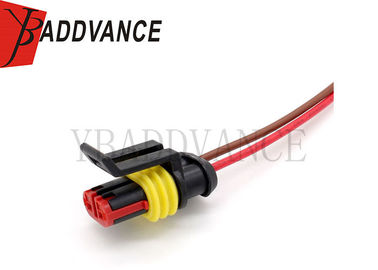

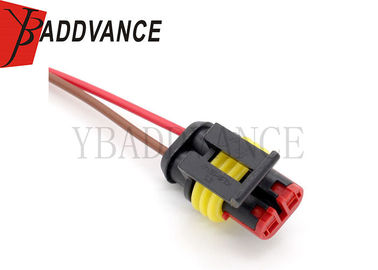

2 Way AMP SUPERSEAL 1.5 Series Female Connector Pigtail 282080-1
Description
Tyco 2 Pin Female Connector Cable Assembly Car Lamp Wire Harness Plug 282080-1
This part come with the following types:
Series: AMP Superseal 1.5 Series
Current (max) : 14A
Gender: Female
Pins: 2 Way
1.5mm Terminal
Termination: Crimp
Voltage (max): 24VDC
Wire Gauge: 20-16 AWG
Reference Part #: 282080-1
Made with High Temp, cross-linked, polyethylene wire in the correct gauge
Assembled in the USA
Specification
| Color | Black |
| Material | PBT |
| Sealed/Unsealed | 282080-1 |
| OE.-no. | Sealed |
| Product Name | 2 Pin Female Connector Cable Assembly Car Lamp Wire Harness Plug |
| Delivery Time | About 3-7 days |
| Gender | Female |
| Sample | We can provide you samples before place an order |
| Application | For Car Lamp |
| Quality Control | All goods will be 100% inspected before shipment |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Contact resistance | Initial 5mΩ Max. after durability tests 8mΩ Max. |
| Insulation resistance | 100MΩ Min. |
| Leak current | 10μA Max. |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Gross weight | 1.5kgs/100 pieces |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
