Product Details:
Payment & Shipping Terms:
|
| OE-No.: | 7283-8852-30 | Pin: | 3 Pin |
|---|---|---|---|
| Gender: | Female | Color: | Black |
| Series: | RH Series | Length: | 15cm |
| Sealed/Unsealed: | Sealed | HS Code: | 8536909000 |
| Application: | For Honda | Material: | PBT |
| High Light: | automotive wiring harness,automotive wire connectors,car wiring harness |
||

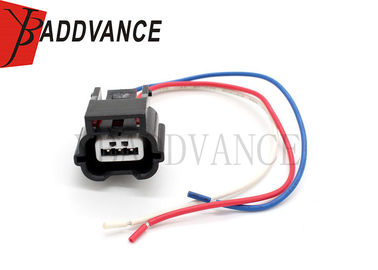

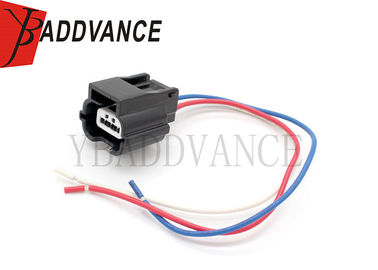

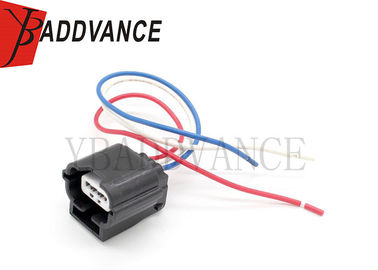

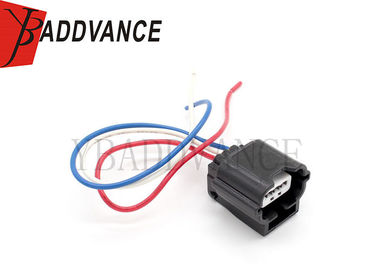

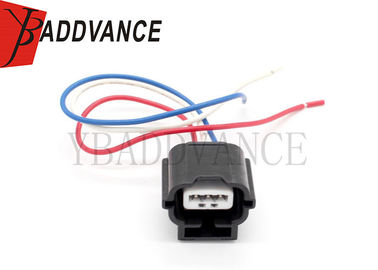

7283-8852-30 3 Pin Female RH Series Headlamp Wire Pigtail Connector For Honda
Description
7283-8852-30 3 Pin Female RH Series Headlamp Wire Pigtail Connector For Honda
This part come with the following types:
Type:ADAPTER
Gender:Female
Pin n/p:3 pin
Material:PBT/PA66
GROSS WEIGHT:1kgs/100pcs
STYLE:Wire Harness
Color:Black
Brand Name:YBADDVANCE
Female housing with 15cm wire
Application:For Honda
Specification
| Product Name | 3 Pin Female RH Series Headlamp Wire Pigtail Connector |
| Sealed/Unsealed | Sealed |
| Gender | Female |
| OE.-no. | 7283-8852-30 |
| Application | For Honda |
| Material | PBT |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Black |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Contact resistance | Initial 5mΩ Max. after durability tests 8mΩ Max. |
| Insulation resistance | 100MΩ Min. |
| Leak current | 10μA Max. |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Gross weight | 1.5kgs/100 pieces |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Delivery Time | About 3-7 days |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
