Product Details:
Payment & Shipping Terms:
|
| Keywords: | Sumitomo 4 Way Connector | Pin: | 4 Pin |
|---|---|---|---|
| MOQ: | 100 Pcs | Gross Weight: | 2.0kgs/100pcs |
| Gender: | Female | HS CODE: | 8536909000 |
| Part-No.: | 6189-0647 | Color: | Black |
| Shipping By: | EMS/HK Post/DHL/UPS/Fedex | Warranty: | One Year |
| Highlight: | sumitomo 2 pin connector,sumitomo 4 pin connector |
||

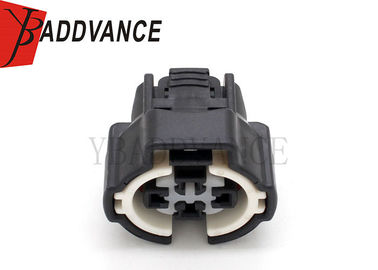

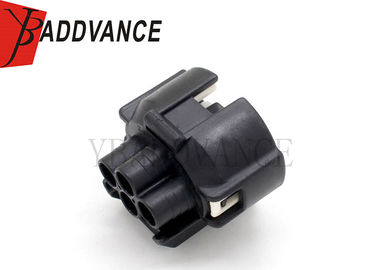

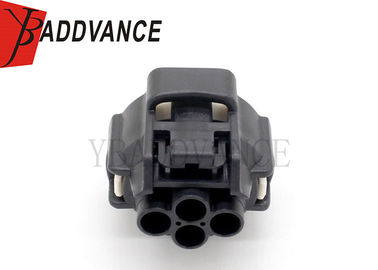

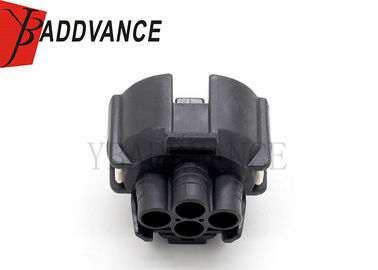

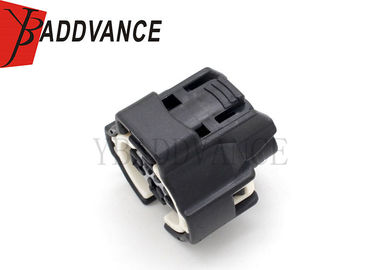

6189-0647 2.2mm Sumitomo 4 Way Connector Female Plug For T-PRS-Switch
Description
6189-0647 2.2mm Sumitomo 4 Way Connector Female Plug For T-PRS-Switch
This part come with the following types:
1 x Black female housing
Application:For T-PRS-Switch
Specification
| Pin | 4 Pin |
| Gross weight | 3.5kgs/100 pieces |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| P/N | 6189-0647 |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| MOQ | 100 units/lot |
| Gender | Female |
| Delivery Time | About 3-7 days |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Sealed/Unsealed | Sealed |
| Color | Black |
| Operating Temperature range | -40~120 |
| Product Name | 4 pin female connector for Toyota |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Insulation resistance | 100MΩ Min. |
| Wire Size | 16-22AWG |
| Including | Connector housing,terminals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
Hot products
| Sumitomo Connector | Pin number | Gender | Application |
| 6189-0715 | 16 Pin | DL Female Connector | |
| 6189-7396 / 90980-12A88 | 1 Pin | Female | For Lexus Toyota |
| 6195-0038 | 8 Pin | DL 090 Female | |
| 6187-2171 | 2 Pin | Female | For Automotive |
| 6098-0148 | Pin | Female Connector | For nissan |
| So on.. | ... | ... | ... |
| Deutsch Connector | Pin number | Gender | |
| DJ7141E-1.5-11 | 14 Pin | Male Connector | For GMC |
| 12048369 | 3 Pin | Female connector | For 9004 HB1 |
| 15326835 | 8 Pin | Female connector | For Cadillac Chevy |
| HB3 HB4 | 2 Pin | Male connector | |
| So on.. | ... | ... | ... |
