Product Details:
Payment & Shipping Terms:
|
| P/N: | 31403-3100 | HS Code: | 8536909000 |
|---|---|---|---|
| Martial: | PBT/PA66 | Color: | Black |
| Gender: | Female | Feature: | Waterproof |
| Way: | 3 Hole | Type: | Molex Connector |
| High Light: | rh connector,waterproof auto electrical connectors |
||

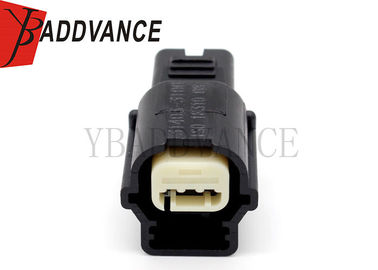

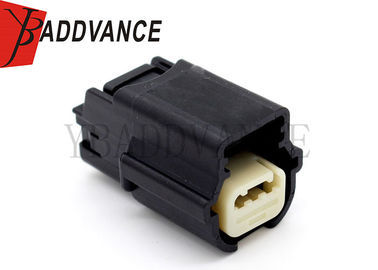

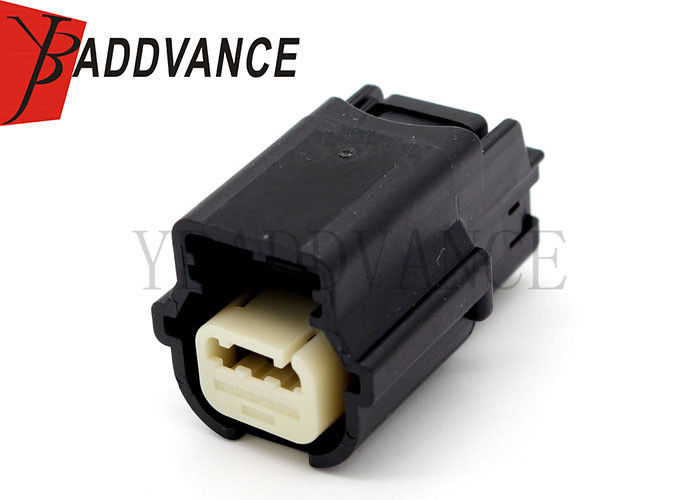

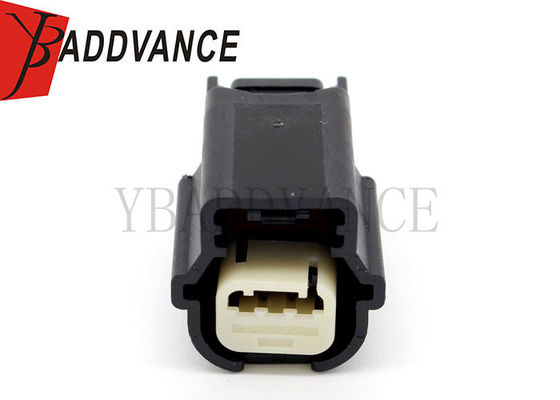

31403-3100 3 Pin Electrical 31403 Series MX64 Sealed Connector
Description
3 Pin Electrical 31403 Series MX64 Sealed Connector
Terminal Pitch (mm):2.54
Body Orientation:Straight
Mounting:Cable Mount
Number of Rows: 1 Row
Number of Positions: 3 Position
Length (mm):18.7
Depth (mm):29.9
Height (mm):21.43
Maximum Current Rating:10/ContactA
Specification
|
Item name |
31403-3100 3 Pin Electrical 31403 Series MX64 Sealed Connector |
| P/N | 31403-3100 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin molex connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 position |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |
Product Picture Details
