Product Details:
Payment & Shipping Terms:
|
| Color: | White | Way: | 2 Way |
|---|---|---|---|
| P/N: | BC7875F | Gender: | Female |
| Application: | For Pumps | Keywords: | 2 Pin Unsealed Connector |
| Number Of Contact: | 2 | Number Of Row: | 1 Row |
| MOQ: | 100 Units | Gross Weight: | 0.6 Kgs/100 Units |
| High Light: | 2 pin sealed connector,waterproof auto electrical connectors |
||

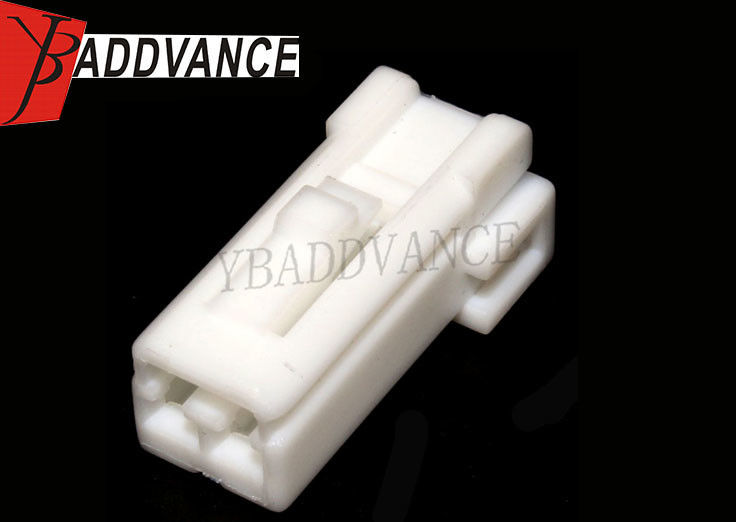

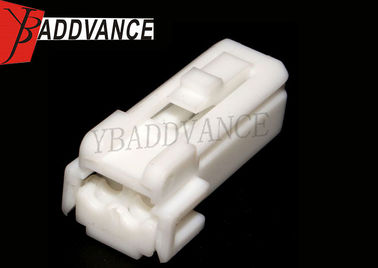

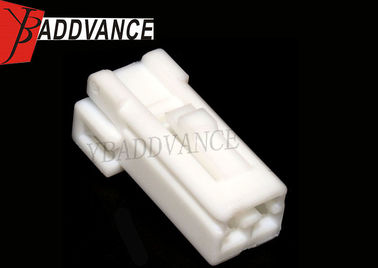

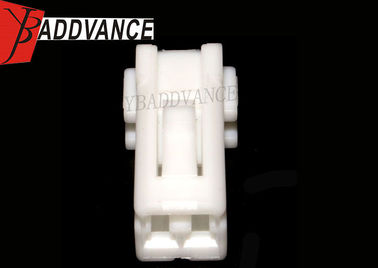

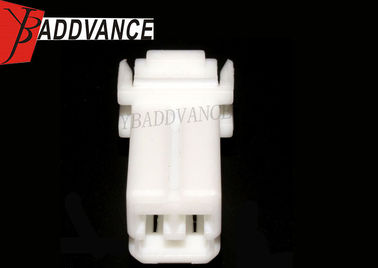

White 2 Way Unsealed Connector With Terminals For Fuel Pumps
Description
Nylon fuel pump connector unsealed nylon 2 way,1 row
and come with the following parts:
What's Included:
1 X Female housing
2 X Female terminals
Specification
|
Item name |
2 pin nylon connector with terminals |
| P/N | BC7875F |
| Gender | Female |
|
Wire Size |
16-22AWG |
|
Operating Temperature range |
-40~125 deg.C |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Number of Positions | 2 Pin |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
unsealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| Application | For fuel pumps |
| Color | White |
| Warranty | 1 year |
| Gross Weight | 0.6kgs/100units |
