Product Details:
Payment & Shipping Terms:
|
| P/N: | SN-28B | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Blue | Gender: | Female |
| Type: | Automotive Tool | Feature: | Waterproof |
| HS Code: | 8536909000 | Way: | 8 Way |
| Highlight: | deutsch waterproof connectors,deutsch dt series connectors |
||

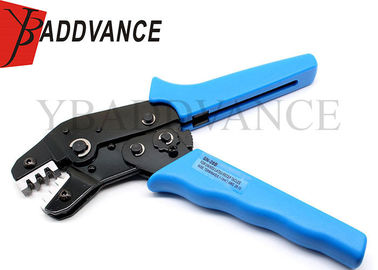

SN-28B Pin Socket Terminal Crimping Tool Crimper 18-28AWG For JST-SM And Dupont
Description
Pin Socket Terminal Crimping Tool Crimper 18-28AWG For JST-SM And Dupont
Color: Blue + Black
Material: Ni-Cr alloy steel
Size: (L) x (W) 190 x 150 mm / 7.48" x 5.51"(appr.)
This crimping tool can be used to crimp both male and female versions of our crimp pins onto 18-28 AWG wires to make custom cables.
The tool offers ratcheting action for increased consistency and ease of use.
Don't cut the pins off the roll, leave them on until the wire is crimped. Prepare the wire by stripping about 1/8" (3 mm) of insulation from the end. Place the wire in the crimp pin, lining it up so that the stripped portion lies between the inner set of tabs on the crimp pin, while insulated wire lies between the outer set of tabs.If your crimppins are too short for this method.
Specification
|
Item name |
SN-28B Pin Socket Terminal Crimping Tool Crimper 18-28AWG For JST-SM And Dupont |
| P/N | SN-28B |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
Deutsch crimp tool |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 8 way |
| Color | Blue |
| Warranty | 1 year |
| Application | Automotive Motorcycles |
Product Picture Details
