Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| P/N: | 7283-8722-30 MG640711-5 | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | Gender: | Female |
| Type: | Auto Connector | Feature: | Waterproof |
| HS Code: | 8536909000 | Way: | 12 Way |
| Highlight: | crankshaft sensor connector,maf sensor connector |
||
7283-8722-30 12 Pole Electrical Connector With Terminals and Seals
Description
12 Pole Electrical Connector With Terminals and Seals
Number of Row: 2
Number of Way : 12
We source only the best quality OEM and replacement parts
It include all the terminals and seals you need for each part
Professional service with technical support, we will always be happy to help you.
Specification
|
Item name |
7283-8722-30 12 Pole Electrical Connector With Terminals and Seals |
| P/N | 7283-8722-30 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
12 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 12 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

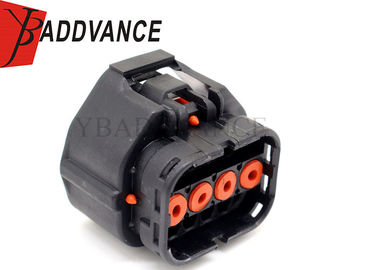

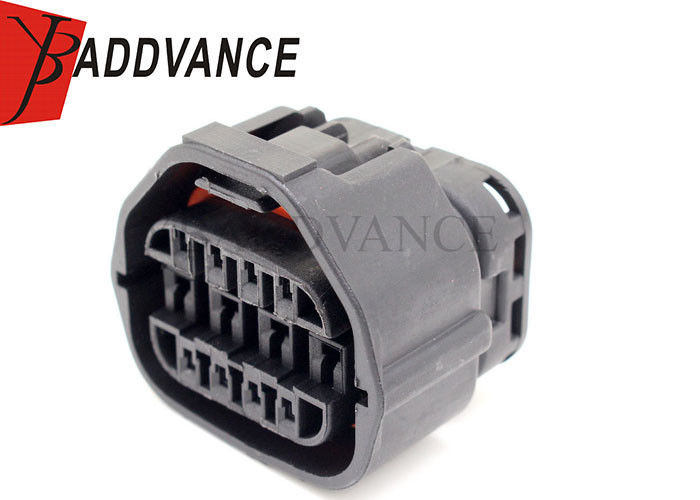

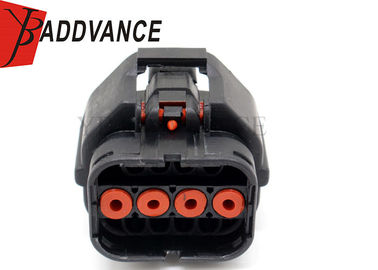

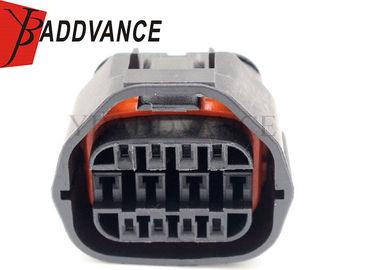

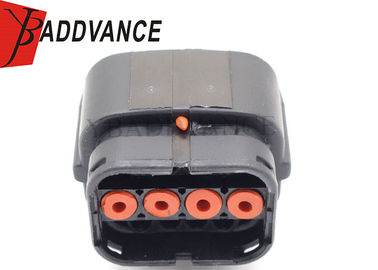

Product Picture Details
