Product Details:
Payment & Shipping Terms:
|
| P/N: | 7283-7041-40 | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | Gender: | Female |
| Type: | Auto Connector | Feature: | Waterproof |
| HS Code: | 8536909000 | Way: | 4 Way |
| High Light: | automotive waterproof electrical connectors,crankshaft sensor connector |
||
7283-7041-40 4 Way Female Waterproof Connector Fit For Engine
Description
4 Way Female Waterproof Connector Fit For Engine
Height :31.65 mm
Width :29.95 mm
Length :29.4mm
Mating part : 7282-7041-40
Connection Type:
Wire to Wire
Wire to Board
Wire to Device
Temperature Range: -40 to 120deg.C
Specification
|
Item name |
7283-7041-40 4 Way Female Waterproof Connector Fit For Engine |
| P/N | 7283-7041-40 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

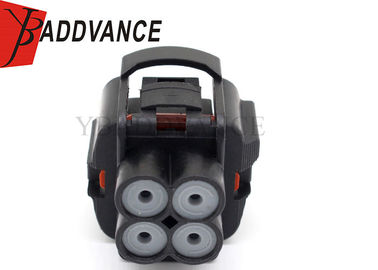

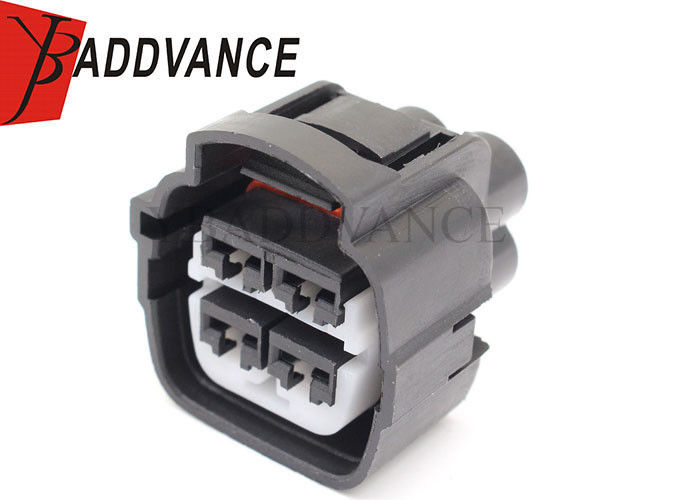

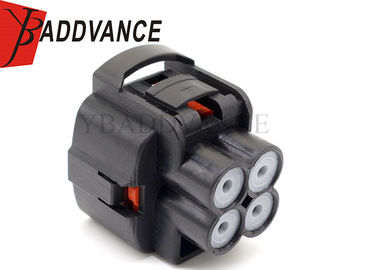

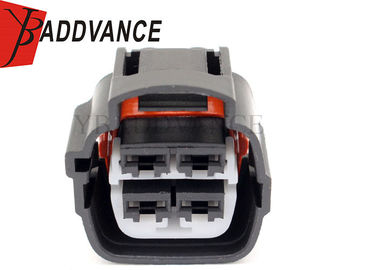

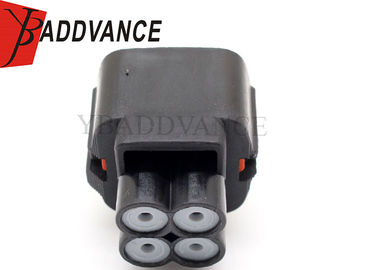

Product Picture Details
