Product Details:
Payment & Shipping Terms:
|
| P/N: | 12059595 | Way: | 3 Way |
|---|---|---|---|
| Color: | Black | Gender: | Female |
| WARRANTY: | 1 Year | Type: | Sealed Connector |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| Feature: | Waterproof | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | rh connector,waterproof auto electrical connectors |
||
12059595 3 Pole Metri-Pack 150 Series Connector For LS1 LT1
Description
3 Pole Metri-Pack 150 Series Connector For LS1 LT1
Height:18.6 mm
Width:29 mm
Length: 26 mm
Series: Metri-Pack 150
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Blade sizes range from 1.5 mm to 8 mm with current capability ranging from 14 to 60 amps.
Specification
|
Item name |
12059595 3 Pole Metri-Pack 150 Series Connector For LS1 LT1 |
| P/N | 12059595 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

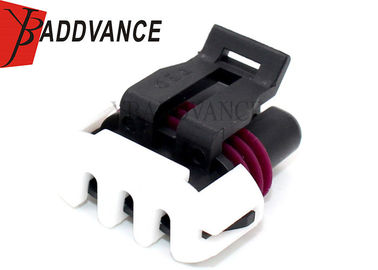

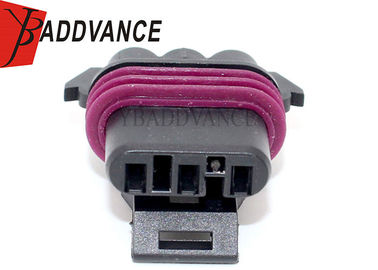

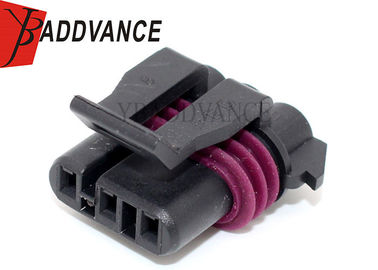

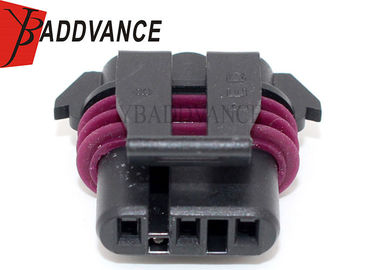

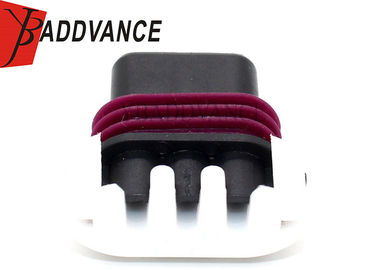

Product Picture Details
