Product Details:
Payment & Shipping Terms:
|
| P/N: | 31403-3700 | Way: | 3 Way |
|---|---|---|---|
| Color: | Black | Gender: | Female |
| WARRANTY: | 1 Year | Type: | Sealed Connector |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| Feature: | Waterproof | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | crankshaft sensor connector,maf sensor connector |
||
31403-3700 3 Way Female Molex MX64 Series Sealed Connector
Description
3 Way Female Molex MX64 Series Sealed Connector
Width :18.7mm
Length :30.6mm
Height : 18.6mm
Body Orientation:Straight
Pitch: 2.54mm
These connectors accept 18-22 AWG wire sizes and are available with CPA which offers added locking protection.
Specification
|
Item name |
31403-3700 3 Way Female Molex MX64 Series Sealed Connector |
| P/N | 31403-3700 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

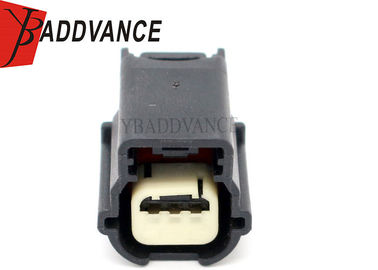

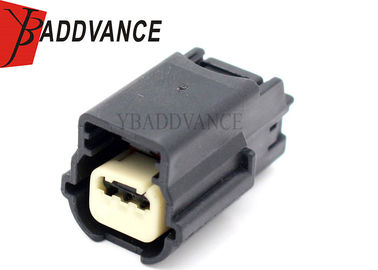

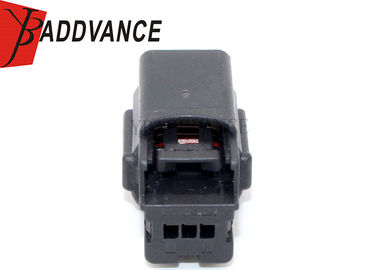

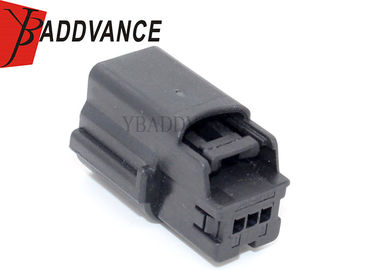

Product Picture Details
