Product Details:
Payment & Shipping Terms:
|
| P/N: | BC7469F | Way: | 6 Way |
|---|---|---|---|
| WARRANTY: | 1 Year | Gender: | Female |
| Color: | White | Type: | Auto Connector |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| Feature: | Unsealed | PLACE OF ORIGIN: | Shaanxi,China |
| Highlight: | sumitomo 2 pin connector,sumitomo terminal connector |
||
6 Pin Female Motorcycle Sumitomo Unsealed Connector With Terminals
Description
6 Pin Female Motorcycle Sumitomo Unsealed Connector With Terminals
Materials: Nylon
Wire size : 14-18 AWG (0.8-2 mm)
We can make the wire if you need it
Please contact us without hesitation if you have any concerns
Specification
|
Item name |
6 Pin Female Motorcycle Sumitomo Unsealed Connector With Terminals |
| P/N | BC7469F |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Unsealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
Unsealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

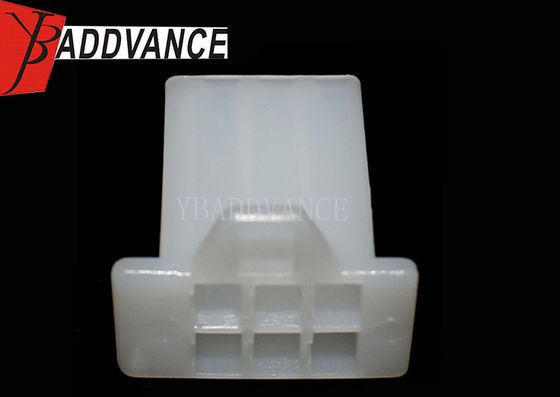

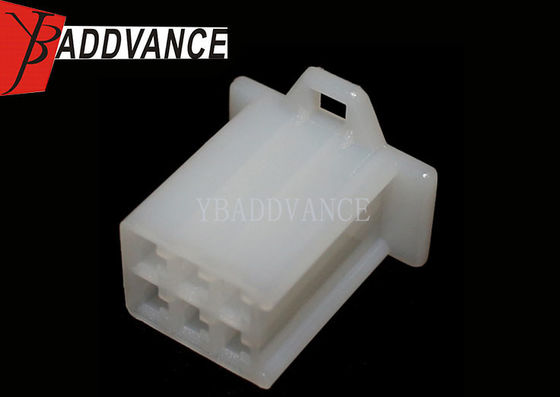

Product Picture Details
