Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Way: | 5 Way |
|---|---|---|---|
| P/N: | BC7053-6.3-21 | Male / Female: | Female |
| Application: | Universal | Keywords: | 5 Pin Relay Socket |
| Terminal Size: | 6.3mm | H: | 26.5mm |
| W: | 31.5mm | L: | 25.9mm |
| Highlight: | rh connector,waterproof auto electrical connectors |
||
Black 6.3mm Universal 5 Pin Relay Socket Connection For Air Conditioning,Car / Auto
Description
5 Way universal relay connector black color with terminals can be provided
and the following will show this type included what parts.
What's Included:
1 X female housing
5 X female terminals
Specification
|
Item name |
5 Pin Relay Socket Connection For Air Conditioning |
| P/N | BC7053-6.3-21 |
| Gender | Female |
|
Wire Size |
16-22AWG |
|
Operating Temperature range |
-40~125 deg.C |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Number of Positions | 5 way |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
unsealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| Application | For Universal |
| Color | Black |
| Warranty | 1 year |
| Gross weight | 1.5kgs/100pieces |

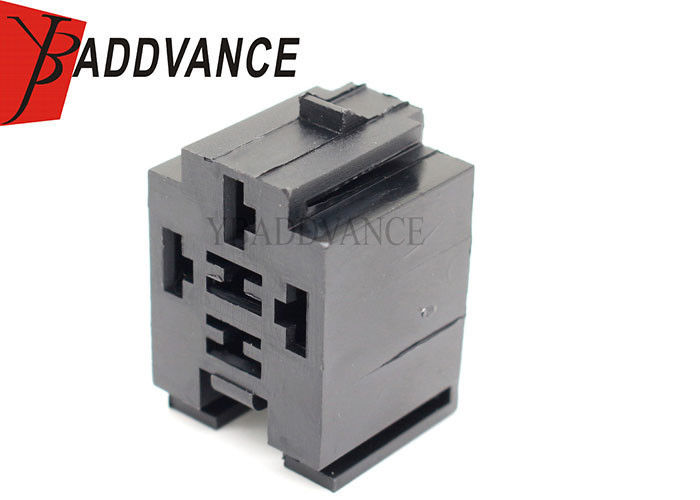

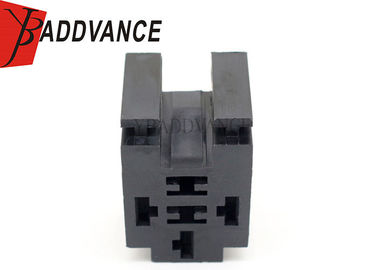

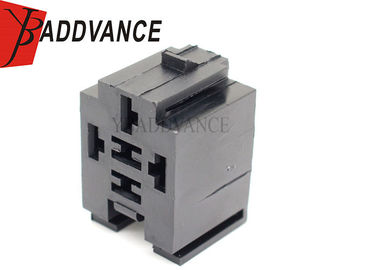

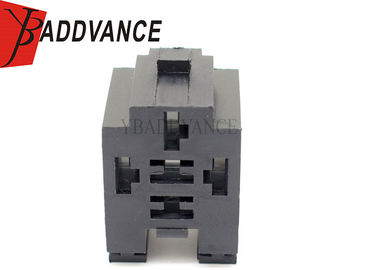

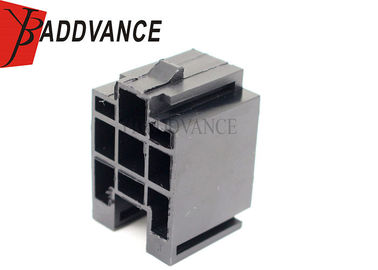

Product Picture Details
