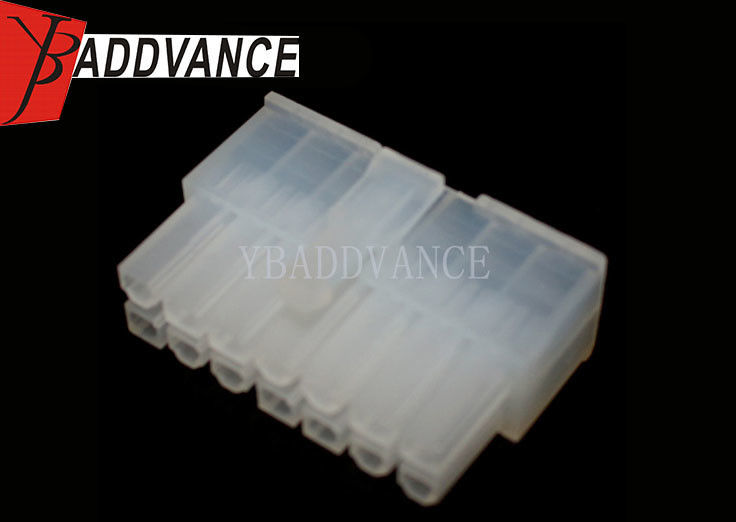

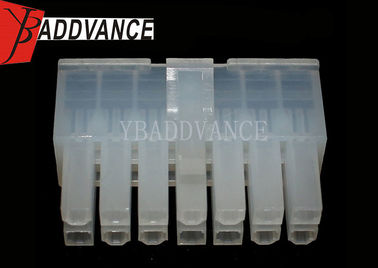

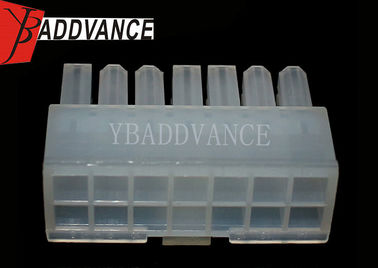

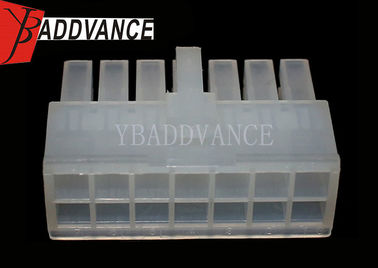

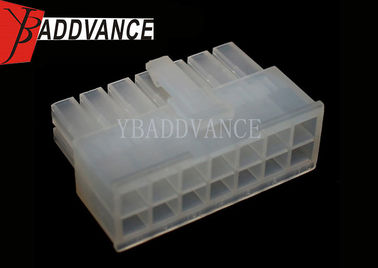

4.2 Mm Natural Mini Fit Automotive Electrical Connectors 14 Way 39012140

Large Image : 4.2 Mm Natural Mini Fit Automotive Electrical Connectors 14 Way 39012140

Product Details:

Place of Origin:	China(mainland)
Brand Name:	YBADDVANCE
Certification:	ISO9001
Model Number:	39-01-2140 39012140 5557-14P

Payment & Shipping Terms:

Minimum Order Quantity:	100 units
Price:	Negotiation
Packaging Details:	Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time:	About 5-8 work days
Payment Terms:	T/T, Western Union,PayPal , credit card
Supply Ability:	50,000 units/moth

Contact Now

Detailed Product Description

P/N:	39-01-2140 39012140 5557-14P	Way:	14 Way
WARRANTY:	1 Year	Gender:	Female
Color:	White	Type:	Auto Connector
Martial:	PBT/PA66	HS Code:	8536909000
Feature:	Unsealed	PLACE OF ORIGIN:	Shaanxi,China
Highlight:	2 pin sealed connector , rh connector

39-01-2140 39012140 14 Way 4.2 mm Natural Mini-Fit Jr 5557 Connector

Description

14 Way 4.2 mm Natural Mini-Fit Jr 5557 Connector

Length:30.6mm

Width:15.1mm

Depth:19.6mm

Pitch:4.2mm
Pitch Spacing: 4.2mm
Series : Mini-Fit Jr. 5557 Series

Max Operating Temperature: 105 °C

Min Operating Temperature: -40 °C

The Mini-Fit product range to be used in high-energy, high-density applications that require a highly flexible design for wire-to-wire, wire-to-board and board-to-board configurations.

Specification

Item name	39-01-2140 39012140 14 Way 4.2 mm Natural Mini-Fit Jr 5557 Connector
P/N	39-01-2140 39012140 5557-14P
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	14 pin Unsealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	Unsealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	14 way
Color	White
Warranty	1 year
Application	Automoive Motorcycles
