Product Details:
Payment & Shipping Terms:
|
| Color: | Green | Number Of Positions: | 10 |
|---|---|---|---|
| P/N: | H-3 | Gender: | Male |
| Sealed/Unsealed: | Sealed | HS Code: | 8536909000 |
| Number Of Rows: | 2 | Keywords: | Electrical Wire Connectors |
| Material: | PBT | Application: | For Auto |
| High Light: | 2 pin sealed connector,rh connector |
||
10 Pin Female Automotive Electrical Wire Connectors Green Color
Description
This 10 pin KET connector we can provide with terminals together
and we also have the mating parts if you want.
What's Included:
1 X female connector housing
10 X female crimp pins
Specification
|
Item name |
10 pin electrical wire connectors |
| P/N | H-3 |
| Gender | Female |
|
Wire Size |
16-22AWG |
|
Operating Temperature range |
-40~125 deg.C |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Way | 10 way |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
unsealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| number of rows | 2 rows |
| Color | Green |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

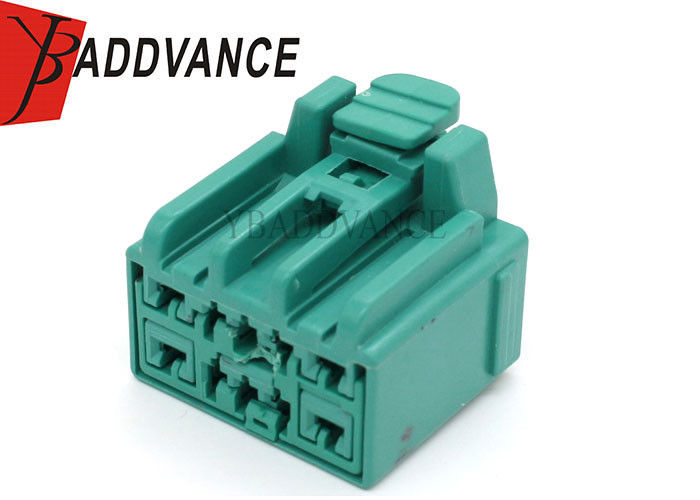

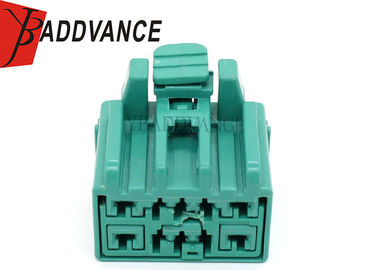

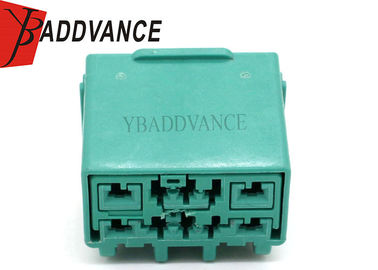

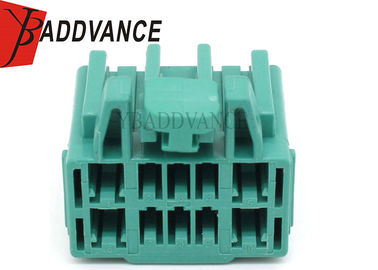

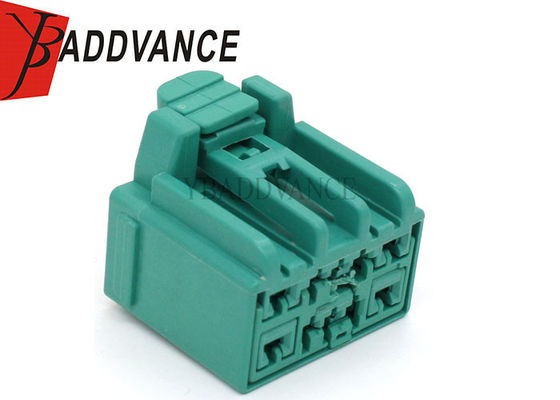

Product Picture Details
