Product Details:
Payment & Shipping Terms:
|
| P/N: | 12162280 | Way: | 3 Way |
|---|---|---|---|
| WARRANTY: | 1 Year | Gender: | Female |
| Color: | Grey | Type: | Sealed Connector |
| Feature: | Waterproof | HS Code: | 8536909000 |
| Martial: | PBT/PA66 | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | automotive waterproof electrical connectors,crankshaft sensor connector |
||
12162280 3 Way Metri-Pack 150.2 Pull to Seat Series PA66 Connector
Description
3 Way Metri-Pack 150.2 Pull to Seat Series PA66 Connector
Width: 19.5 mm
Height : 17.4 mm
Length : 27.1mm
Series: Metri-Pack 150.2 Pull to Seat
Max Current Rating :14
The connector with triple rib silcone rubber seals for environemntal protection.
Specification
|
Item name |
12162280 3 Way Metri-Pack 150.2 Pull to Seat Series PA66 Connector |
| P/N | 12162280 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

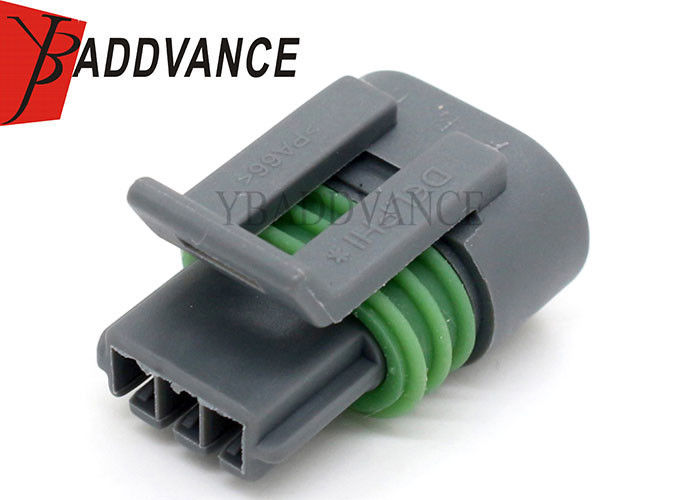

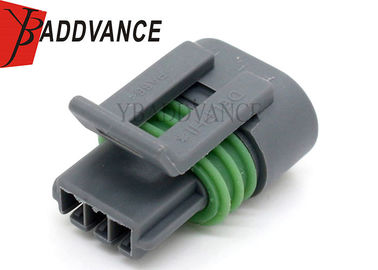

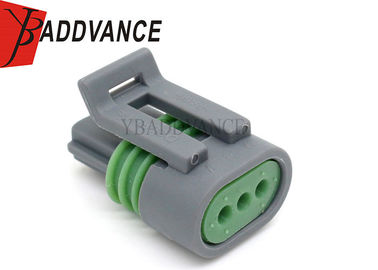

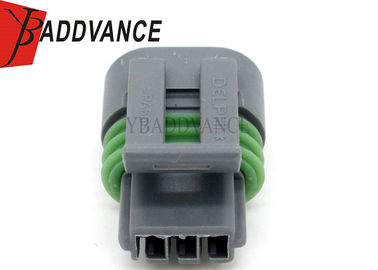

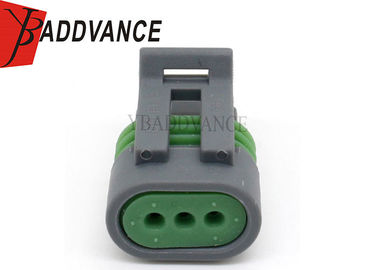

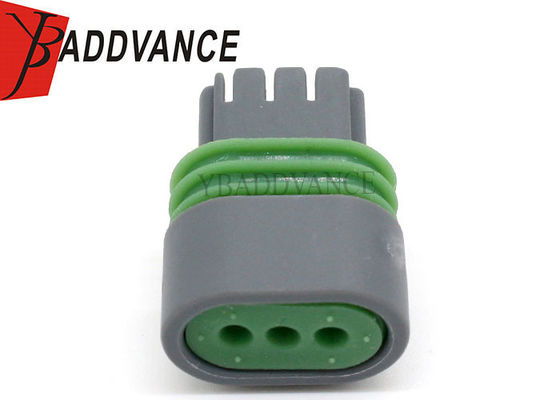

Product Picture Details
