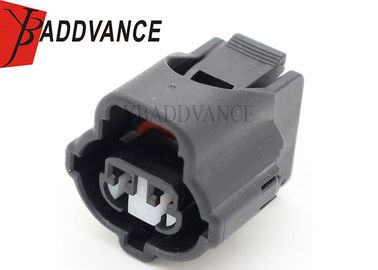

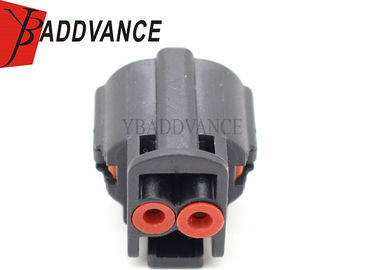

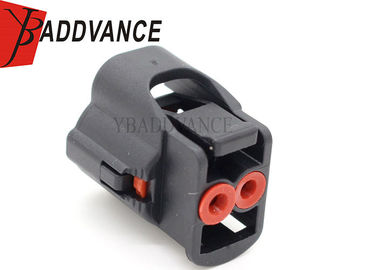

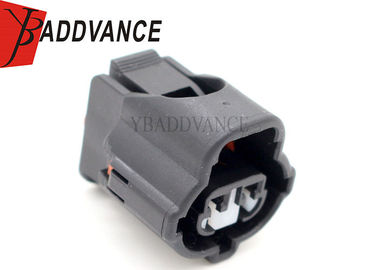

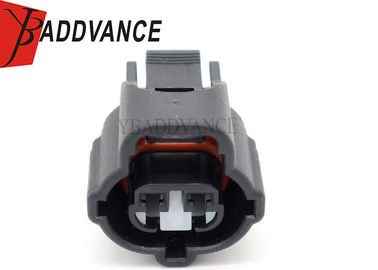

Toyota Intake Air Temperature Sensor Connector / Black 2 Way Female Connector

Large Image : Toyota Intake Air Temperature Sensor Connector / Black 2 Way Female Connector

Product Details:

Place of Origin:	China(mainland)
Brand Name:	YBADDVANCE
Certification:	ISO9001
Model Number:	7283-7929 , 90980-11025 , 90980-11401

Payment & Shipping Terms:

Minimum Order Quantity:	100 UNITS
Price:	USD 0.5-0.7 Per set with crimp terminals
Packaging Details:	Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
Delivery Time:	About 5-8 work days
Payment Terms:	T/T, Western Union,paypal,credit card
Supply Ability:	50,000 units/month

Contact Now

Detailed Product Description

Toyota P/N:	90980-11025 , 90980-11401	Keywords:	Intake Air Temperature Connector
Material:	PBT	Sealed/Unsealed:	Sealed
Color:	Black	Gender:	Female
Number Of Positions:	2 Pin	Number Of Rows:	1 Row
Leak Current:	100μA Max.	Insulation Resistance:	100MΩ Min.
Highlight:	automotive waterproof electrical connectors , maf sensor connector

2 Way Female Connector For Toyota Intake Air Temperature (IAT) 7283-7929 90980-11401

Product Description

2 Pin Intake Air temperature (IAT) Connector For Toyota and this Connector

comes with connector housing, terminals and seals or with pigtail (6in).

Please choice what is you want?

1 X female housing

1 X Inner Seal

1 X White locking Clip

2 X Wire seal

2 X Terminals

Specification

Keywords	2 Pin female connector
Part Number	7283-7929 , 90980-11025 , 90980-11401
Sealed/Unsealed	Sealed Connector
Male/Female	female
Material	PBT
Way	2 way
Contact resistance	Initial 3mΩ Max. after durability tests 6mΩ Max
Leak current	100μA Max.
Insulation resistance	100MΩ Min.
seal	Initial 98kPa Min. after durability tests 98kPa Min.
Quality Control	All goods will be 100% inspected before shipment
Housing Color	Black
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1.5kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
