Product Details:
Payment & Shipping Terms:
|
| P/N: | 6181-6850 | Way: | 8 Way |
|---|---|---|---|
| WARRANTY: | 1 Year | Gender: | Female |
| Color: | Black | HS Code: | 8536909000 |
| Feature: | Waterproof | Type: | Sealed Connector |
| Martial: | PBT/PA66 | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | sumitomo 2 pin connector,sumitomo terminal connector |
||

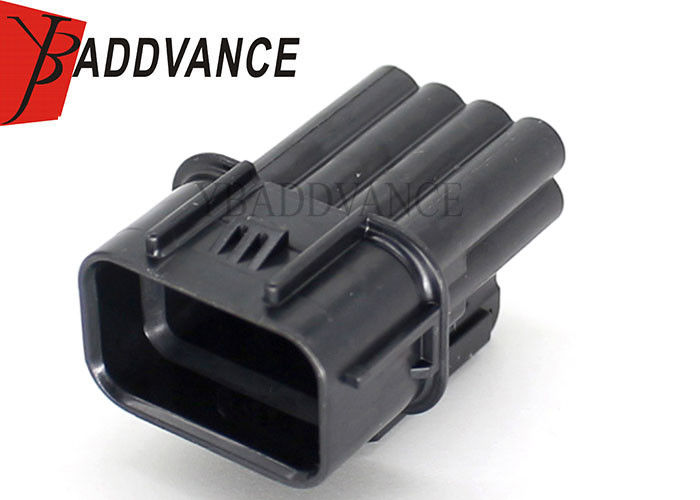

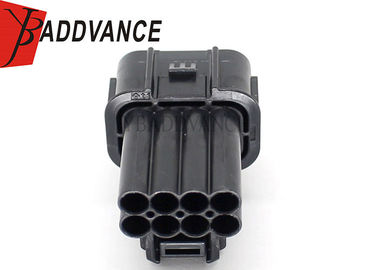

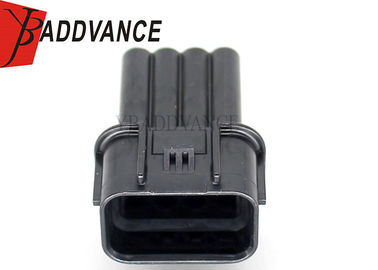

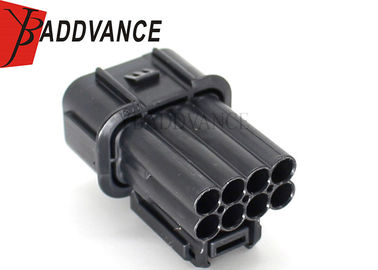

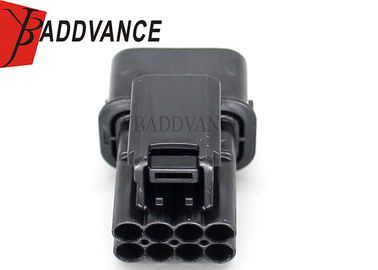

6181-6850 8 Pin Male Sumitomo HX Sealed 060 Series Connector
Description
8 Pin Male Sumitomo HX Sealed 060 Series Connector
Pitch : 1.5mm
Width: 26.2 mm
Height : 22.75mm
Length : 35.5mm
Mating connector: 6189-7423
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Specification
|
Item name |
6181-6850 8 Pin Male Sumitomo HX Sealed 060 Series Connector |
| P/N | 6181-6850 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
8 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 8 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
Product Picture Details
