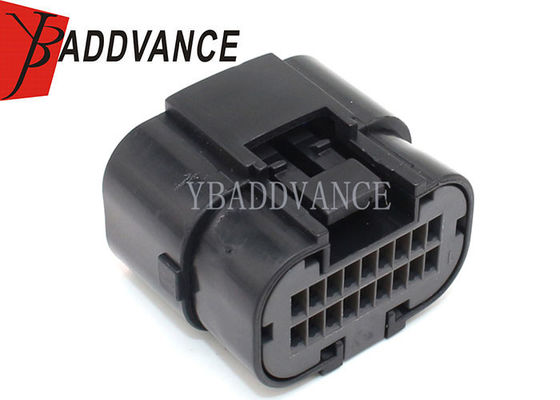

Electronics 18 Way Female Jae Connectors Automotive MX23A18SF1 MX23A18XF1

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Electronics 18 Way Female Jae Connectors Automotive MX23A18SF1 MX23A18XF1

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: MX23A18SF1 MX23A18XF1

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into Ziplock bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Series: MX23A Connector Type: Receptacle
Contact Type: Female Socket Number Of Positions: 18
Number Of Rows: 2 Row Spacing: 0.173" (4.40mm)
Feature: Waterproof Contact Termination: CRIMP
Martial: PBT/PA66 Color: Black
High Light:

jae electronics connectors

,

female receptacle connector

Automotive Electronics 18 Way JAE Female Connector MX23A Series MX23A18SF1 MX23A18XF1







Description



18Ways Plug & Socket Connectors & Components,2.5 mm,MX23 Socket Contacts with Terminals



Mating Products:
MX23A18XF1
Conn Front Cap 18pos Socket Hsng



MX23A18NF1
Conn Header R/a 18pos 2.5mm

MX23A18NF2
Conn Header R/a 18pos 2.5mm



What's Included

1   X female housing

1   X front cap clip

18 X terminals







Specification



Item name

MX23A Series 18 Way JAE Female Connector
P/N MX23A18SF1 MX23A18XF1

Number of Way

18 Way
Number of Rows 2 Rows

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

JAE Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of Contact 18
Color  Black
Warranty 1 year
Application Automoive Motorcycles







Product Picture Details



Electronics 18 Way Female Jae Connectors Automotive MX23A18SF1 MX23A18XF1 0
