Product Details:
Payment & Shipping Terms:
|
| Part Number: | 6189-0596 | Product Range: | HX Series |
|---|---|---|---|
| Number Of Positions: | 3 | Number Of Rows: | 1 |
| Gender (terminal): | Female | Sealed/Unsealed: | Sealed |
| Longest Dimension (connector Face): | 29.0mm | Terminal Shape: | Receptical |
| Application: | Fit For Honda TRX 450 Tail Light Connector | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | sumitomo 2 pin connector,sumitomo terminal connector |
||
3 Pin 3 Way Sumitomo HX Series 090 Kawasaki Tail Light Connector 6189-0596 6918-1371
Description
3 Way HX Sealed Series Female Connector With Terminals Fit wire size .6 - 1.3 mm (18-22 AWG)
Applications include
Kawasaki Tail light connector
Fit For OBD2 Honda TRX 450 Tail Light Connector
What's include
1 X Female Housing
1 X Blue Locking Clip
3 X Female Terminals
3 X Wire Seals
Specification
|
Item name |
3 Way Sumitomo HX Series 090 Kawasaki Tail Light Connector |
| Sumitomo P/N | 6189-0596 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin female connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 Holes |
| Color | Black |
| Warranty | 1 year |
| Application | For Japanese Cars |

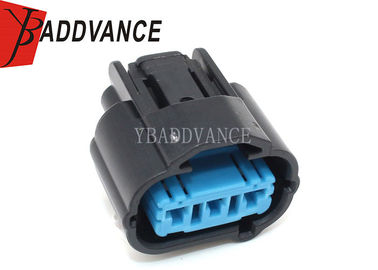

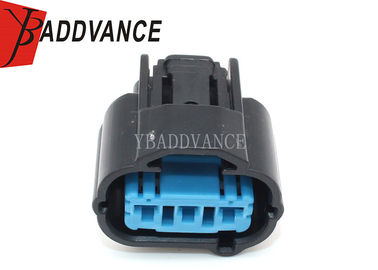

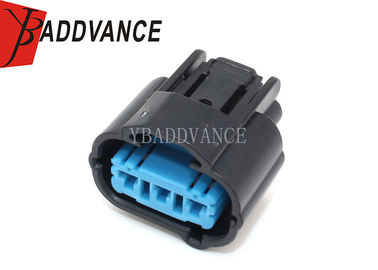

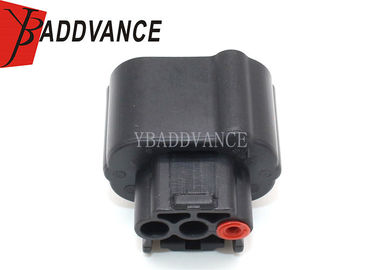

Product Picture Details
