Product Details:
Payment & Shipping Terms:
|
| Series: | Furukawa 250 QLW Series | Gender: | Female |
|---|---|---|---|
| Part Number: | QLW-A-B3F-B And QLW-A-3F-GR | Keywords: | 3 Pin Female Connector |
| Number Of Positions: | 3 Pin | HS Code: | 8536909000 |
| Connection Type: | Wire To Wire ,Wire To Board ,Wire To Device | Application: | For Shindengen Mosfet Type Rectifiers |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | 2 pin sealed connector,rh connector |
||

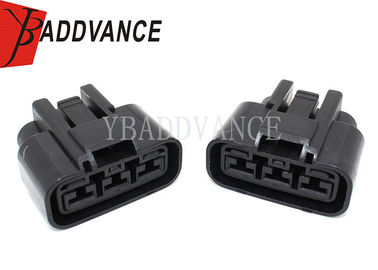

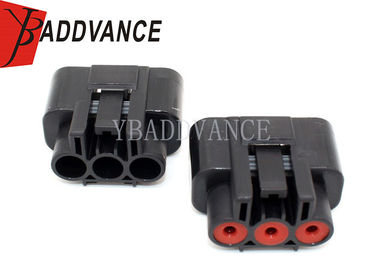

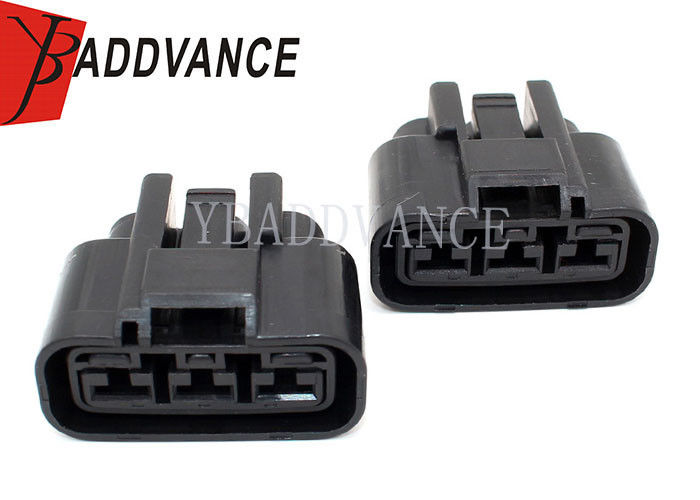

Furukawa QLW 250 3 Pin Female Connector For FH Series Shindengen Rectifier / Regulators
Description
Furukawa QLW-250 Series Sealed Connectors,for Shindengen Mosfet type Rectifiers.
Fit Shindengen SH775, FH020, FH012, FH011, FH010, and FH009 Series Rectifier/Regulators.
1.Furukawa QLW 250 3 Pin Female Connector
For wire sizes 2mm - 3mm2 (12 - 14 AWG) Japan
Furukawa Part numbers QLW-A-B3F-B
These come complete with
1 x Female Housing
2 x Female Terminals
2 x Blue Seals
1 x Yellow Cavity Plug
2.Furukawa QLW 250 3 Pin Female Connector
For wire sizes 2mm - 3mm2 (12 - 14 AWG) Japan
Furukawa Part numbers QLW-A-3F-GR
This comes complete with
1 x Female Housing
3 x Female Terminals
3 x Blue Seals
Specification
|
Item name |
Furukawa QLW 250 3 Pin Female Connector For FH Series Shindengen Rectifier / Regulators |
| Part Number 1 | QLW-A-B3F-B |
| Part Number 2 | QLW-A-3F-GR |
|
Wire Size |
12-14AWG |
|
Operating Temperature range |
-40~125 deg.C |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Application |
Used on the Triumph factory harness (Stator side) |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| Number of way | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
Product Picture Details
