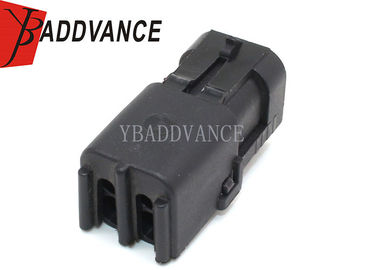

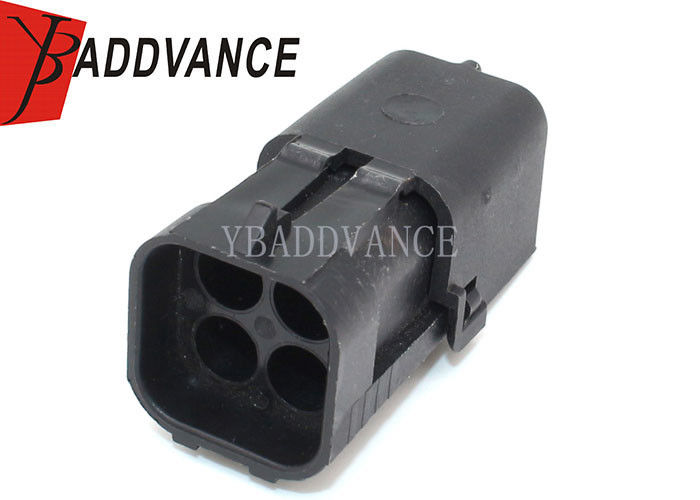

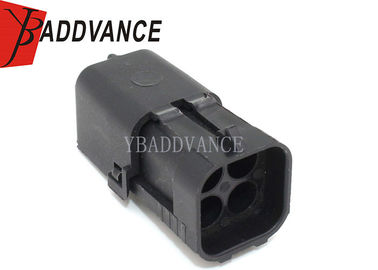

12015024 GM Weather Pack Electrical Connector Square Shroud 4 Pin Male

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

12015024 GM Weather Pack Electrical Connector Square Shroud 4 Pin Male

12015024 GM Weather Pack Electrical Connector Square Shroud 4 Pin Male
12015024 GM Weather Pack Electrical Connector Square Shroud 4 Pin Male 12015024 GM Weather Pack Electrical Connector Square Shroud 4 Pin Male 12015024 GM Weather Pack Electrical Connector Square Shroud 4 Pin Male 12015024 GM Weather Pack Electrical Connector Square Shroud 4 Pin Male 12015024 GM Weather Pack Electrical Connector Square Shroud 4 Pin Male

Large Image :  12015024 GM Weather Pack Electrical Connector Square Shroud 4 Pin Male

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 12015024

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: negotiation
Packaging Details: Inside packing:100 units/lot put into bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Amperage Rating: 20 Contacts: Pin
Mounting Type: Receptacle Positions: 4
Wire Size (mm²): 0.35-3.0 Gender: Male
Housing Material: PA Termination Method: Crimp
Number Of Rows: 2 Rows Type: Square
High Light:

coil pack connector

,

metri pack connector

12015024 GM Weatherpack Electrical Connector Square Shroud 4 Pin Male 14-18 AWG







Product Description



4 Way Black Weather Pack Shroud Sealed Male Connector, Max Current 20 amps

Delphi Weather Pack Connectors are environmentally sealed electrical connections designed to withstand exposure to extreme temperatures and moisture. Terminals are tin plated and have special core wings which allow crimp-only connections, eliminating the need for solder. The connector and cavity seals are triple-ribbed and made of self-lubricating silicone. Cavity plugs are available to fill unused cavities.



1 X Male Housing

4 X Wire Seals

4 X Male Terminals







Specification



Mount Cable
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Number of Contacts 4
Number of Positions 4
Number of Rows 2
Termination Crimp
Depth 47mm
Height 24.9 mm
Width 24.1 mm
Connector System Wire-to-Wire
Quality Control  All goods will be 100% inspected before shipment
Color Black
Gender  Male
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1.8kgs/100 pieces
Shipping express  DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL







More product pictures

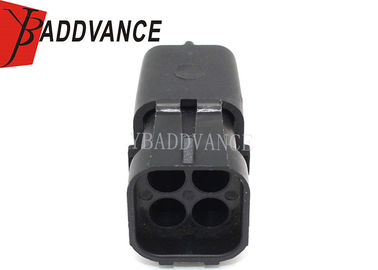

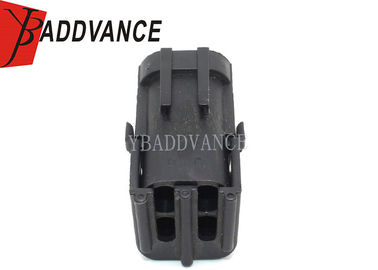

12015024 GM Weather Pack Electrical Connector Square Shroud 4 Pin Male 0

12015024 GM Weather Pack Electrical Connector Square Shroud 4 Pin Male 1
