Product Details:
Payment & Shipping Terms:
|
| Color: | Yellow | P/N: | DS250-3F |
|---|---|---|---|
| Way: | 3 Hole | Type: | Waterproof Connector |
| Feature: | Sealed | Martial: | PBT/PA66 |
| Gender: | Female | HS Code: | 8536909000 |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | automotive waterproof electrical connectors,maf sensor connector |
||
DS250-3F 3 Pin 250 Sealed Connector For Japanese Motorcycle
Description
3 Pin 250 Sealed Connector For Japanese Motorcycle
Series : 250 Sealed
These unique and hard to find connectors are some of the earliest sealed types.
Using .250” terminals, they are capable of currents up to 20A.
Please contact us without hestation if you have more concerns or questions
Specification
|
Item name |
DS250-3F 3 Pin 250 Sealed Connector For Japanese Motorcycle |
| P/N | DS250-3F |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
Sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Yellow |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

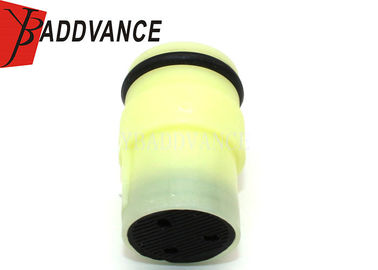

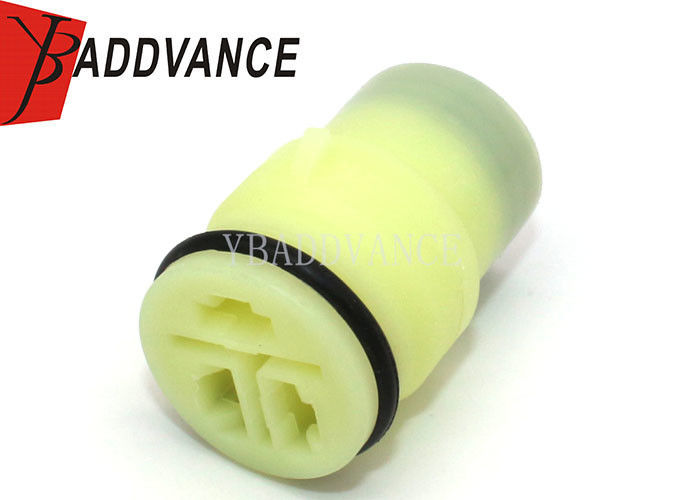

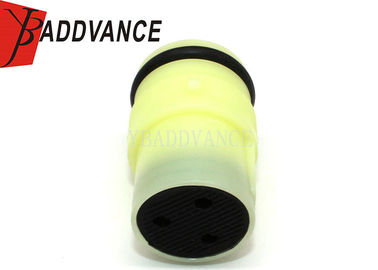

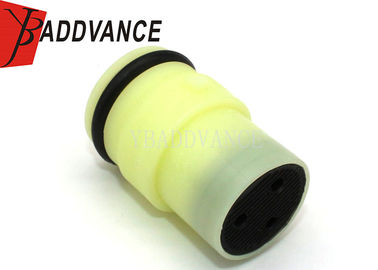

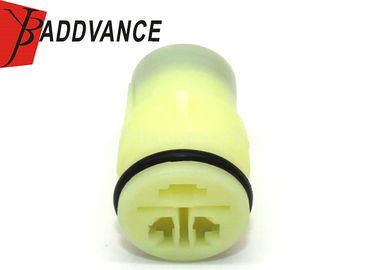

Product Picture Details
