Product Details:
Payment & Shipping Terms:
|
| Color: | Black | P/N: | BC7813 |
|---|---|---|---|
| Martial: | PBT/PA66 | Type: | Automotive Connector |
| Feature: | Unsealed | Way: | 2 Hole |
| Gender: | Female | HS Code: | 8536909000 |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | rh connector,waterproof auto electrical connectors |
||
2 Way Female Unsealed Automotive Connector With Terminals
Description
2 Way Unsealed Automotive Connector
It come with 1 housing +2 terminals
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.
Specified assembly and wiring are accepted
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Welcome to contact us for more information
Specification
|
Item name |
2 Way Female Unsealed Automotive Housing Connector With Terminals |
| P/N | BC7813 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
Unsealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

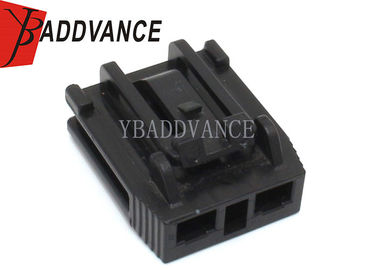

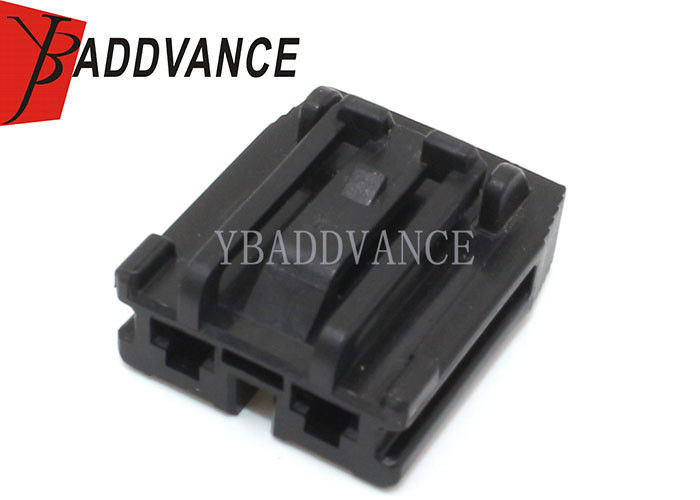

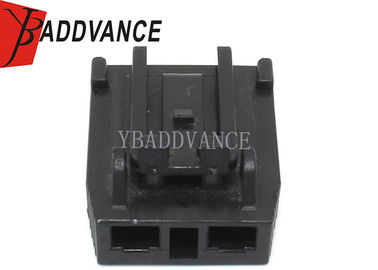

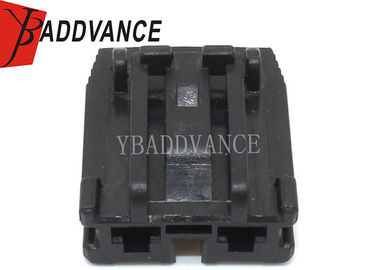

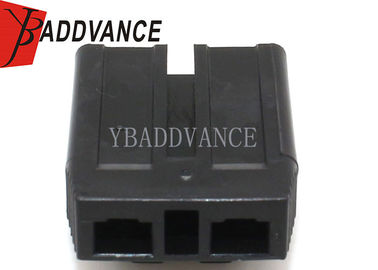

Product Picture Details
