Product Details:
Payment & Shipping Terms:
|
| Part-No.: | 1J0973705 | Series: | 1.5 Mm Sealed |
|---|---|---|---|
| Cavities: | 5 | Number Of Row: | 1 |
| Sealed/Unsealed: | Sealed | Keywords: | 5 Pin Female Connector |
| Application: | For VW | Used For: | For MAF, CAM Sensors |
| Highlight: | automotive headlight connectors,headlight plug connector |
||

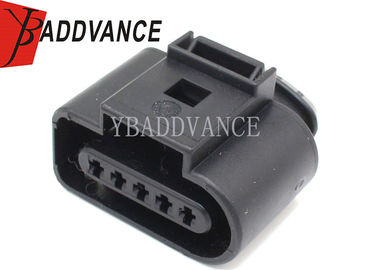

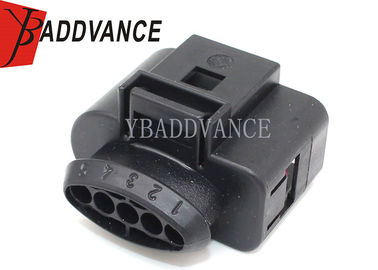

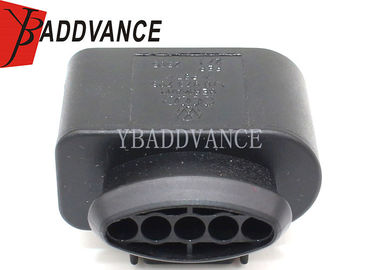

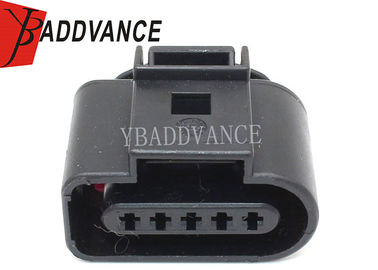

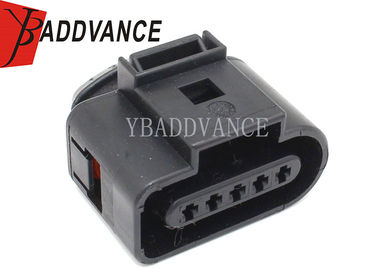

5 Way Female Connector Sealed 1.5mm , 1 Row For VW MAF Sensor 1J0973705 1J0 973 705
Description
5 way female connector is used for Mass Air Flow sensor and Can-bus interface Cam Position Sensor.
5 Pin Sealed Female Connector with all kits together for VW AUDI and so on...
1 X female housing
1 X female terminals
5 X wire seals
1 X inner seal
Specification
| Product Name | 5 Way female connector |
| OE NO. | 1J0973705 1J0 973 705 |
| Type | Waterproof Sealed connector |
| Male/Female | female |
| Sealed/Unsealed | sealed |
| Material | PBT |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Black |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 120 |
| Contact resistance | Initial 5mΩ Max. after durability tests 8mΩ Max. |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
