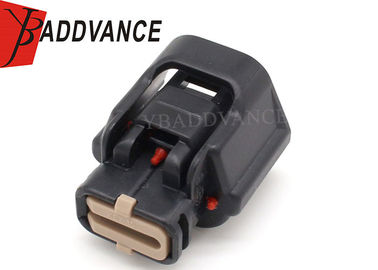

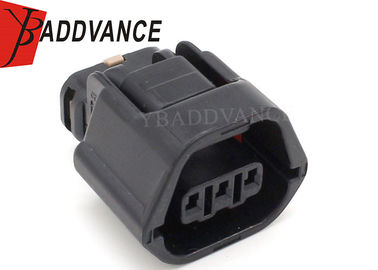

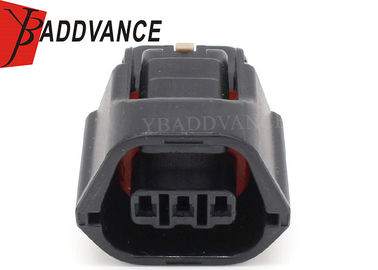

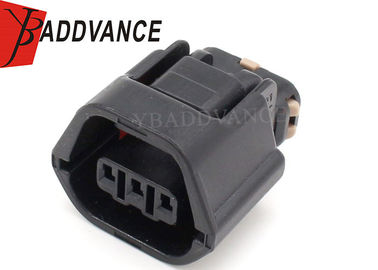

Camshaft Position Sensor Connector / SSD Connector EVO Mivec For Mitsubishi 7283-8730-30

Large Image : Camshaft Position Sensor Connector / SSD Connector EVO Mivec For Mitsubishi 7283-8730-30

Product Details:

Place of Origin:	China(mainland)
Brand Name:	YBADDVANCE
Certification:	ISO9001
Model Number:	7283-8730-30

Payment & Shipping Terms:

Minimum Order Quantity:	100 units
Price:	Negotiation
Packaging Details:	Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time:	About 5-8 work days
Payment Terms:	T/T, Western Union,PayPal , credit card
Supply Ability:	50,000 units/moth

Contact Now

Detailed Product Description

Unsealed/Seald:	Sealed	Number Of Poles:	3 Pin
Series:	SSD Series Connectors	COLOR/PLATING:	Black
Connection Type:	Wire To Wire , Wire To Board , Wire To Device	Wire Gauge:	18 - 22 Awg
Application:	For Mitsubishi	Length:	26mm
Width:	22.90mm	High:	18.75mm
Highlight:	2 pin sealed connector , rh connector

3 Pin Camshaft Angle Position Sensor SSD Connectors EVO Mivec For Mitsubishi 7283-8730-30

Description

YBADDVANCE 3 Pin female connector come with all the assembly kits that I showed as the following:

1 X female housing

1 X locking clip

3 X wire seals

3 X female terminals

Application:

Where used:
DSM 1997-1999: CAS
3S: 93- CAS
Evo: CAS

050 SSD 3 Pin female Connector is Common used for some Kawasaki and Suzuki TPS Sensors,

as well as others!!

Specification

Housing P/N	7283-8730-30
Series	SSD 050 Series
Mating Part Numbers	7282-8730-30
Connection Type	Wire to Wire , Wire to Board , Wire to Device
Material	PBT
Lock to Mating Part	Yes
Operating Temperature range	-40~125 degree
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	3 pin female sensor connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
Way	3 Way
Gender	Female
Color	Black
Warranty	1 year
Application	Automoive Motorcycles
