Product Details:
Payment & Shipping Terms:
|
| Included: | Yellow Lock + Crimp Terminals + Wire Seals | P/N: | FW-C-4M-B |
|---|---|---|---|
| Terminal Size: | 2.3mm | Number Of Rows: | 2 |
| Number Of Pins: | 4 | Length: | 35.7mm |
| Width: | 16.9mm | Height: | 19.7mm |
| Keywords: | 4 Pin Motorcycle Connector | Warranty: | One Year |
| High Light: | crankshaft sensor connector,maf sensor connector |
||

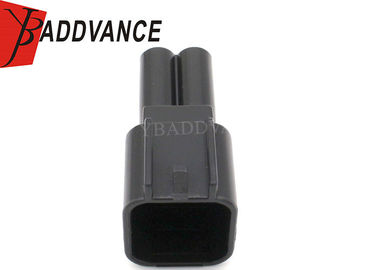

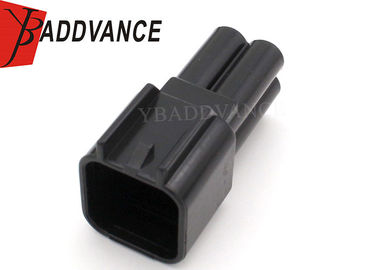

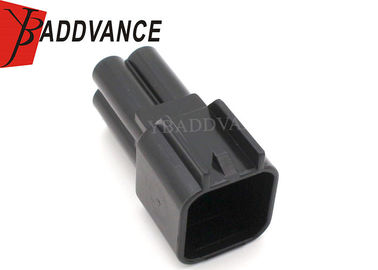

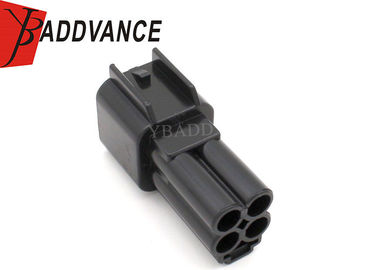

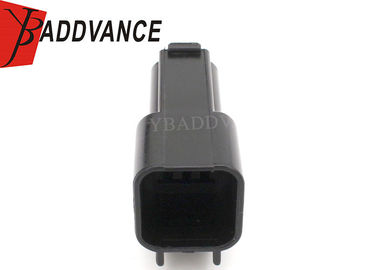

Furukawa FW 090 4 Way Male Black RFW Sealed Motorcycle Connectors FW-C-4M-B
Product Description
4 Pin male connector with yellow lock is used on CCM, Kawasaki and other motorcycle and vehicles.
Plug Length: 35.7mm, Width: 16.9mm, Height:19.7mm
1 X Male Housing
1 X Yellow lock
4 X Wire seals
4 X Crimp Terminals
Specification
| Keywords | Furukawa connectors |
| Part Number | FW-C-4M-B |
| Included | Assembly kits |
| Gender | M |
| Material | PBT |
| Number of Rows | 2 Rows |
| Number of way |
4 Way |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| seal |
Initial |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Black |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
