Product Details:
Payment & Shipping Terms:
|
| P/N: | 827580-1 827572-1 | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | Gender: | Female |
| Way: | 7 Hole | Feature: | Waterproof |
| HS Code: | 8536909000 | Type: | AMP Connector |
| High Light: | tyco automotive connectors,tyco circular connectors |
||
827580-1 827572-1 7 Hole TE Connectivity AMP Automotive Connector
Description
7 Hole TE Connectivity AMP Automotive Connector
The steel top spring provides additional locking protection.
Pitch : 5 mm
Height :24.5 mm
Width : 28.6mm
Length : 50.5 mm
Series: Junior Power Timer
TE Connectivity has developed the Timer Series Connector family to meet the increasing requirements for reliability and water resistance.
Specification
|
Item name |
827580-1 827572-1 7 Hole TE Connectivity AMP Automotive Connector |
| P/N | 827580-1 827572-1 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
7 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 7 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

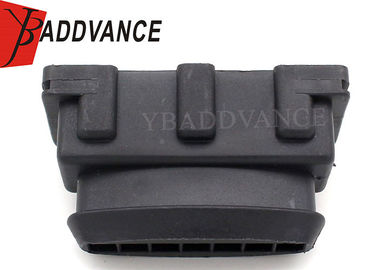

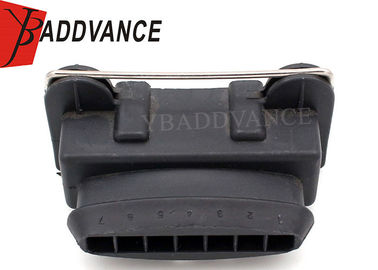

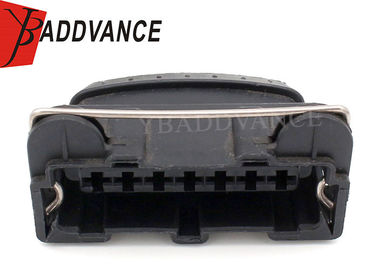

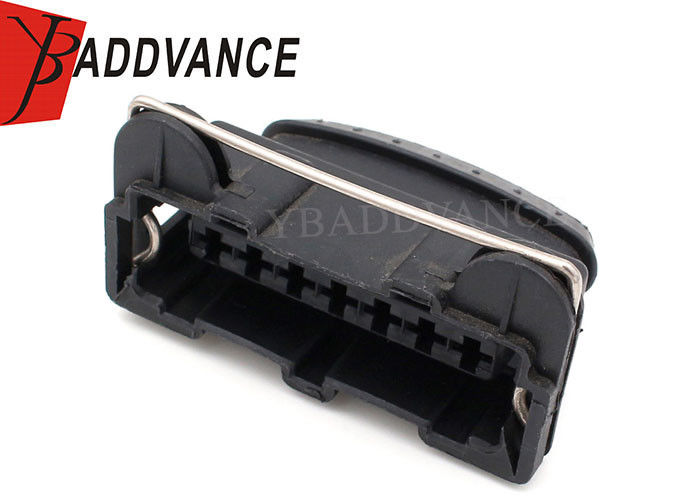

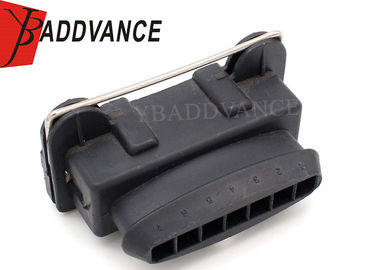

Product Picture Details
