Product Details:
Payment & Shipping Terms:
|
| P/N: | 106462-1 1928402448 | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | Gender: | Female |
| Way: | 2 Hole | Feature: | Waterproof |
| HS Code: | 8536909000 | Type: | AMP Connector |
| High Light: | tyco automotive connectors,tyco superseal connectors |
||

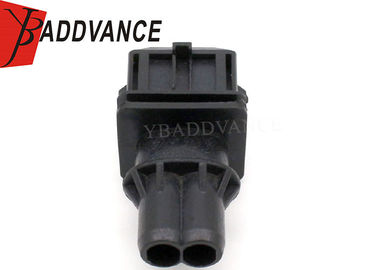

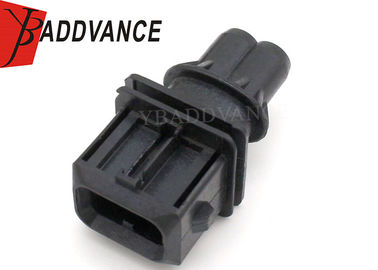

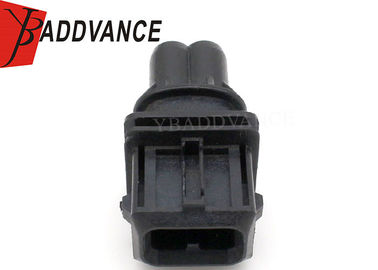

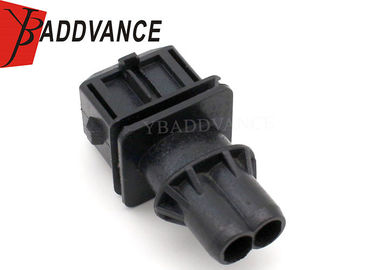

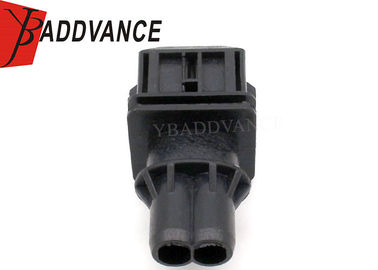

106462-1 1928402448 2 Hole Male TE Connectivity AMP JPT Connectors
Description
2 Hole Male TE Connectivity AMP JPT Connectors
For Use With: FastIN-ON Series Male Terminals
Pitch : 5 mm
Height :12.2mm
Width : 19.7mm
Length : 36.5 mm
2 way Tab Housing for Junior-Power-Timer male contacts on single wire sealing system.
Specification
|
Item name |
106462-1 1928402448 2 Hole Male TE Connectivity AMP JPT Connectors |
| P/N | 106462-1 1928402448 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |
