3 Pin Sumitomo Automotive Connectors Top Slot HV / HVG Sealed Connector 6189-7037 6918-1833

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

3 Pin Sumitomo Automotive Connectors Top Slot HV / HVG Sealed Connector 6189-7037 6918-1833

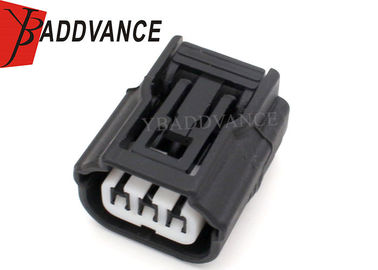

large.img.alt

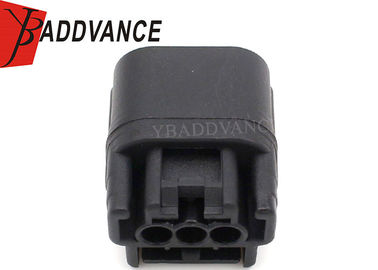

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  3 Pin Sumitomo Automotive Connectors Top Slot HV / HVG Sealed Connector 6189-7037 6918-1833

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6189-7037 6918-1833

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into Ziplock bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Gender: Female Martial: PBT/PA66
Color: Black P/N: 6189-7037 6918-1833
Way: 3 Hole Feature: Waterproof
HS Code: 8536909000 Type: Sumitomo Connector
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

sumitomo 4 pin connector

,

sumitomo terminal connector

6189-7037 6918-1833 3 Pin Sumitomo Top Slot HV/HVG Sealed Connector





Description



3 Pin Sumitomo Top Slot HV/HVG Sealed Connector

1 Row, 3 Way

Height : 15.4 mm

Width : 23.4 mm

Length :  24.5 mm

Series : HV/HVG sealed series 1.0 mm(040)

Mating part : 6188-4775

Related Part : Lock : 6918-1833

Width : 13.5 mm

Height : 7.5 mm

It is top slot, please check the picture carefully before you purchase it .









Specification



Item name

6189-7037 6918-1833 3 Pin Sumitomo Top Slot HV/HVG Sealed Connector
P/N 6189-7037 6918-1833

Wire Size

18-20AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

3 pin waterproof Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  3 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

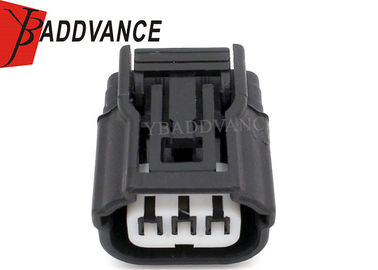

3 Pin Sumitomo Automotive Connectors Top Slot HV / HVG Sealed Connector 6189-7037 6918-1833 0

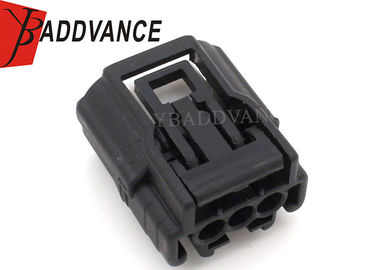

3 Pin Sumitomo Automotive Connectors Top Slot HV / HVG Sealed Connector 6189-7037 6918-1833 1

3 Pin Sumitomo Automotive Connectors Top Slot HV / HVG Sealed Connector 6189-7037 6918-1833 2
