Home ProductsDeutsch Automotive Connectors

3 Hole TE Connectivity Deutsch Automotive Connectors DT04-3P-E005 With End Cap

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

3 Hole TE Connectivity Deutsch Automotive Connectors DT04-3P-E005 With End Cap

3 Hole TE Connectivity Deutsch Automotive Connectors DT04-3P-E005 With End Cap
3 Hole TE Connectivity Deutsch Automotive Connectors DT04-3P-E005 With End Cap 3 Hole TE Connectivity Deutsch Automotive Connectors DT04-3P-E005 With End Cap 3 Hole TE Connectivity Deutsch Automotive Connectors DT04-3P-E005 With End Cap 3 Hole TE Connectivity Deutsch Automotive Connectors DT04-3P-E005 With End Cap 3 Hole TE Connectivity Deutsch Automotive Connectors DT04-3P-E005 With End Cap

Large Image :  3 Hole TE Connectivity Deutsch Automotive Connectors DT04-3P-E005 With End Cap

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: DT04-3P-E005

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Martial: PBT/PA66 Gender: Male
Color: Black Type: Deutsch Connector
HS Code: 8536909000 Feature: Waterproof
WARRANTY: Male Deutsch Connector P/N: DT04-3P-E005
High Light:

deutsch waterproof connectors

,

te connectivity deutsch connectors

DT04-3P-E005 3 Hole TE Connectivity Receptacle Connector with End Cap





Description



3 Hole TE Connectivity Receptacle Connector with End Cap

Height : 44.65 mm

Width : 24.71 mm

Length :  21.14 mm

Current Rating: 13A

Mating Pin Diameter : 1.5 mm
Centerline (Pitch) : 8.7 mm

Mounting Style: In Line

Shape: Triangular
Required Wedgelock: W3P
Wire Gauge Range: 20 AWG to 14 AWG





Specification



Item name

DT04-3P-E005 3 Hole TE Connectivity Receptacle Connector with End Cap
P/N DT04-3P-E005

Wire Size

14-20AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

3 pin waterproof Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  3 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

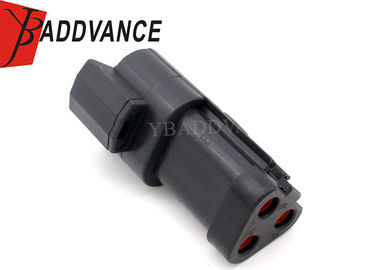

3 Hole TE Connectivity Deutsch Automotive Connectors DT04-3P-E005 With End Cap 0

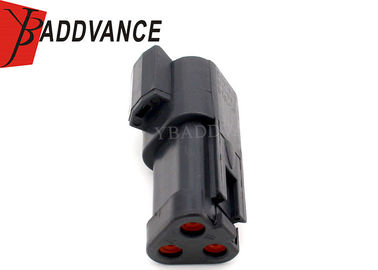

3 Hole TE Connectivity Deutsch Automotive Connectors DT04-3P-E005 With End Cap 1

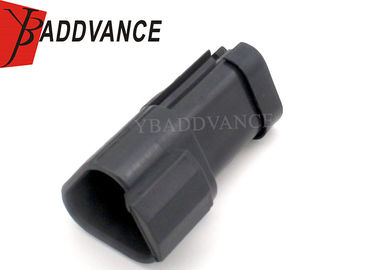

3 Hole TE Connectivity Deutsch Automotive Connectors DT04-3P-E005 With End Cap 2
