Product Details:
Payment & Shipping Terms:
|
| Gender: | Male | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | Way: | 8 Hole |
| Type: | 8 Pin Deutsch Connector | HS Code: | 8536909000 |
| Feature: | Waterproof | P/N: | DT04-8P-E005 |
| High Light: | deutsch dt series connectors,te connectivity deutsch connectors |
||
DT04-4P-E005 4 Way Male TE Connectivity Deutsch Rectangular Connector
Description
8 Pin Male Deutsch DT Series Automotive Connector DT04-8P-E005
Height : 20.22 mm
Width : 31.62 mm
Length : 1.72 in
Current Rating: 7.5 A
Mating Pin Diameter : 1.5 mm
Centerline (Pitch) : 4.5 mm
Mounting Style: In Line
Wire Gauge Range: 20 AWG to 14 AWG
The DT design strengths include optional flange mounting, multi-pin arrangements, lower cost, and design flexibility.
The Deutsch DT series of connectors are precision engineered with silicone seals to provide positive, weather resistant connections, and to function flawlessly even after hundreds of connect/disconnect cycles.
Specification
|
Item name |
8 Pin Male Deutsch DT Series Automotive Connector DT04-8P-E005 |
| P/N | DT04-8P-E005 |
|
Wire Size |
14-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
8 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 8 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

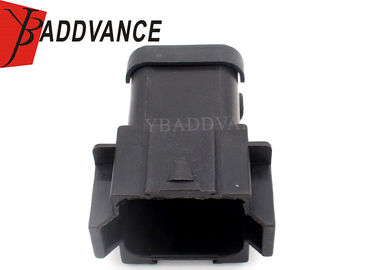

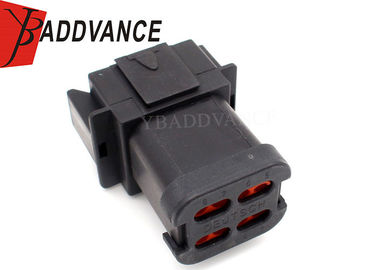

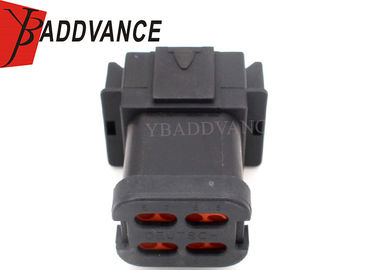

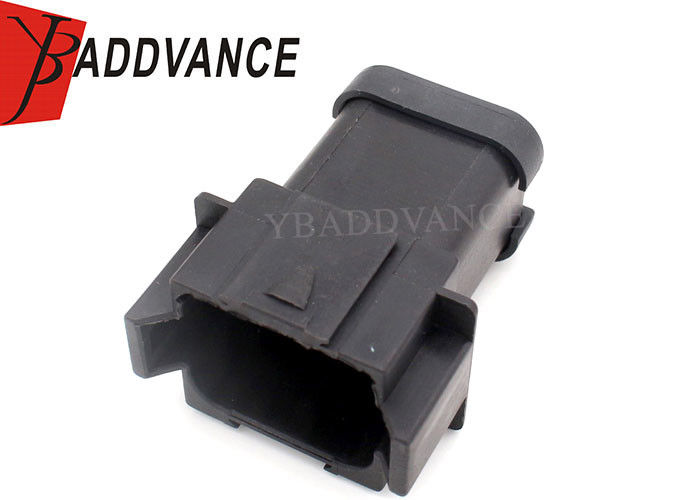

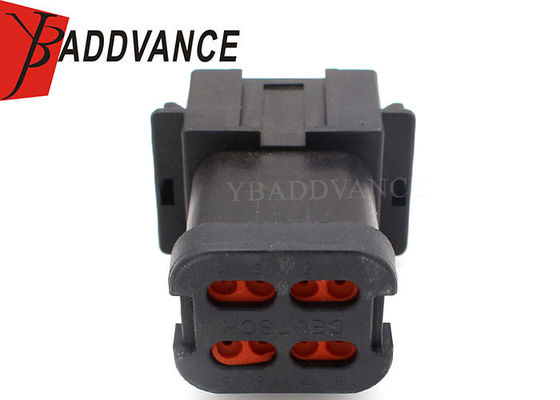

Product Picture Details
