Product Details:
Payment & Shipping Terms:
|
| Gender: | Female | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | P/N: | 1-1419168-1 |
| Way: | 6 Hole | Feature: | Waterproof |
| HS Code: | 8536909000 | Type: | Tyco Connector |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | tyco superseal connectors,tyco circular connectors |
||

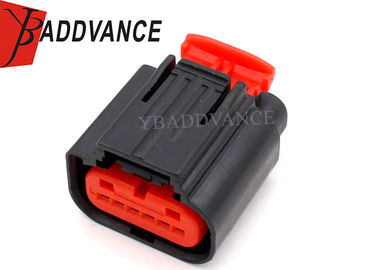

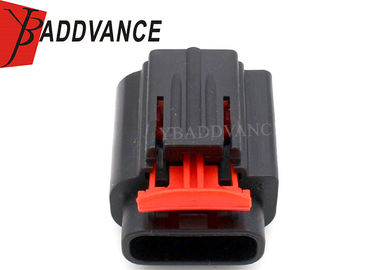

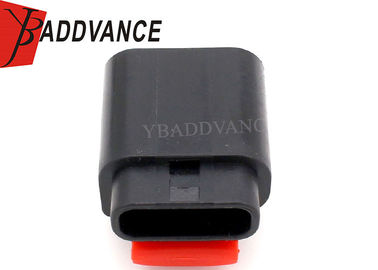

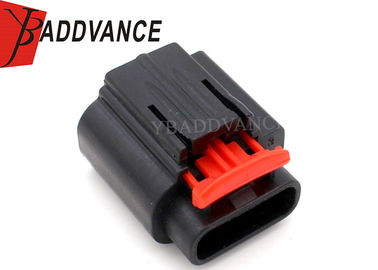

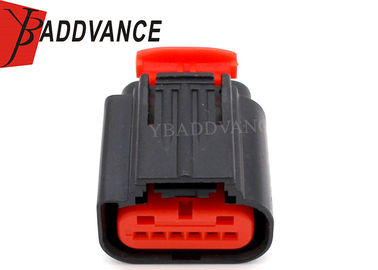

1-1419168-1 6 Hole Female AMP/TYCO MAF Sensor Connector for Ford
Description
6 Hole Female AMP/TYCO MAF Sensor Connector for Ford
Height : 31.6 mm
Width : 18.7 mm
Length : 24.4 mm
Wire Gauge Range: 20 AWG to 18 AWG
This connector is commonly found on F ORD MAF sensors, M AZDA drive-by-wire sensors, and other vehicles.
6 Pin Connector for Electronic Throttle control, Throttle Pedal Electronic Sensor TPS DBW. Replace WPT-1063, WPT1063, AU2Z-14S411-MA, AU2Z14S411MA
Specification
|
Item name |
1-1419168-1 6 Hole Female AMP/TYCO MAF Sensor Connector for Ford |
| P/N | 1-1419168-1 |
|
Wire Size |
18-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
Product Picture Details
