Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Gender: | Female | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | P/N: | DT06-2S-E005 |
| Way: | 2 Hole | Feature: | Waterproof |
| HS Code: | 8536909000 | Type: | Deutsch Connector |
| High Light: | deutsch waterproof connectors,deutsch dt series connectors |
||
DT06-2S-E005 2 Pin Female TE Connectivity End Cap Compatible Connector
Description
2 Pin Female TE Connectivity End Cap Compatible Connector
Height : 31.32 mm
Width : 16.56 mm
Length : 15.01 mm
Mating connector: DT04-2P-E005
Mating Pin Diameter : 1.5 mm
Centerline (Pitch) : 5.5 mm
Wire Gauge Range: 20 AWG to 14 AWG
Required Wedgelock: W2S or W2S-P012
Modification: End Cap
Flange/In-line/PCB Mount: In-line
Amperage Rating: 13
Deutsch DT Series connectors offer field proven reliability and rugged quality.
The DT Series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.
Specification
|
Item name |
DT06-2S-E005 2 Pin Female TE Connectivity End Cap Compatible Connector |
| P/N | DT06-2S-E005 |
|
Wire Size |
14-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

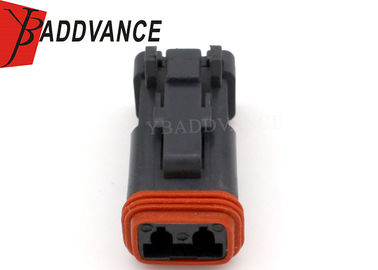

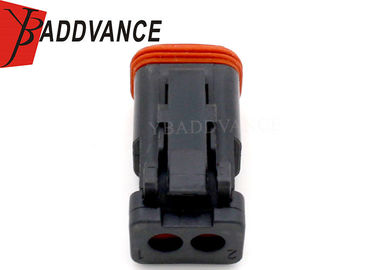

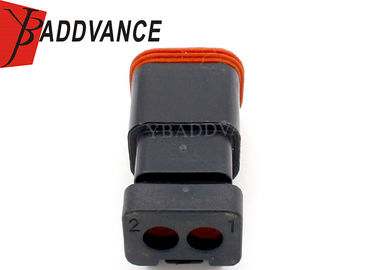

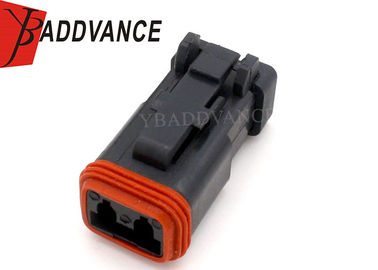

Product Picture Details
