1928403736 4 Way Female White Waterproof Compact Bosh Connector

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

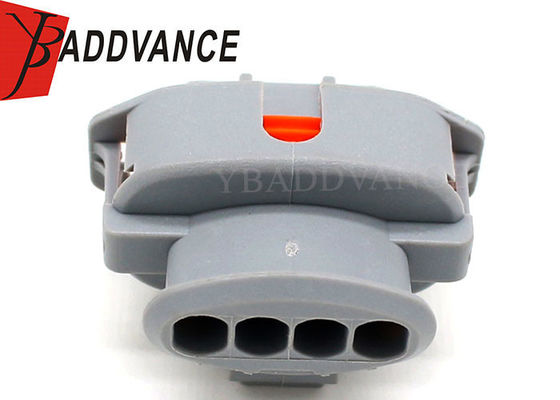

1928403736 4 Way Female White Waterproof Compact Bosh Connector

1928403736 4 Way Female White Waterproof Compact Bosh Connector
1928403736 4 Way Female White Waterproof Compact Bosh Connector 1928403736 4 Way Female White Waterproof Compact Bosh Connector 1928403736 4 Way Female White Waterproof Compact Bosh Connector 1928403736 4 Way Female White Waterproof Compact Bosh Connector 1928403736 4 Way Female White Waterproof Compact Bosh Connector

Large Image :  1928403736 4 Way Female White Waterproof Compact Bosh Connector

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 1928403736

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into Ziplock bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Color: White Martial: PBT/PA66
Gender: Female P/N: 1928403736
Way: 4 Hole Feature: Waterproof
HS Code: 8536909000 Type: Bosh Connector
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

rh connector

,

waterproof auto electrical connectors

1928403736 4 Way Female White Waterproof Compact Bosh Connector







Description



4 Way Female White Waterproof Compact Bosh Connector

Length: 30.7mm
Width : 37mm
Height : 22.5mm

Series: Compact 1.1

It come with : 1 Housing Connetor +4 Terminals +4 Wire Seal+1 Lock+1 Inner Seal

Housing : 1 928 403 736
Terminals : 1 928 498 056
Wire Seals : 1 928 300 599

Maximum Operating Temperature: 150℃
Minimum Operating Temperature: -40℃

These connectors are suitable for Bosh diesel fuel systems








Specification



Item name

1928403736 4 Way Female White Waterproof Compact Bosh Connector
P/N 1928403736

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

4 pin waterproof Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  4 way
Color  White
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details



1928403736 4 Way Female White Waterproof Compact Bosh Connector 0

1928403736 4 Way Female White Waterproof Compact Bosh Connector 1

1928403736 4 Way Female White Waterproof Compact Bosh Connector 2
