Product Details:
Payment & Shipping Terms:
|
| Color: | Black | P/N: | 6189-0591 6918-1370 |
|---|---|---|---|
| Martial: | PBT/PA66 | Type: | Sumitomo Connector |
| Feature: | Waterproof | Way: | 1 Hole |
| Gender: | Female | HS Code: | 8536909000 |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | sumitomo 4 pin connector,sumitomo terminal connector |
||
1 Hole Sumitomo HX Sealed Series Connector 6189-0591 6918-1370
Description
1 Hole Sumitomo HX Sealed Series Connector
This one is Primarily used as Late Model H onda Car Horn Connector
Width :19.4 mm
Height: 21.6 mm
Length :28.3 mm
Related product :
Lock : 6918-1370
Width:9.4 mm
Heigth:9.4mm
It come with 1 housing +1 wire seal+1 terminal+ 1 Lock
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.
We can make the wire if you need it .
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
1 Hole Sumitomo HX Sealed Series Connector 6189-0591 6918-1370 |
| P/N | 6189-0591 6918-1370 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
1 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 1 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

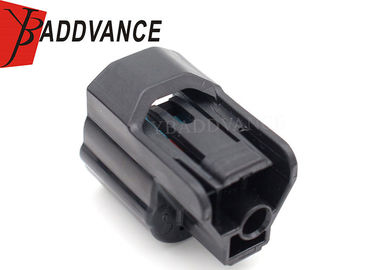

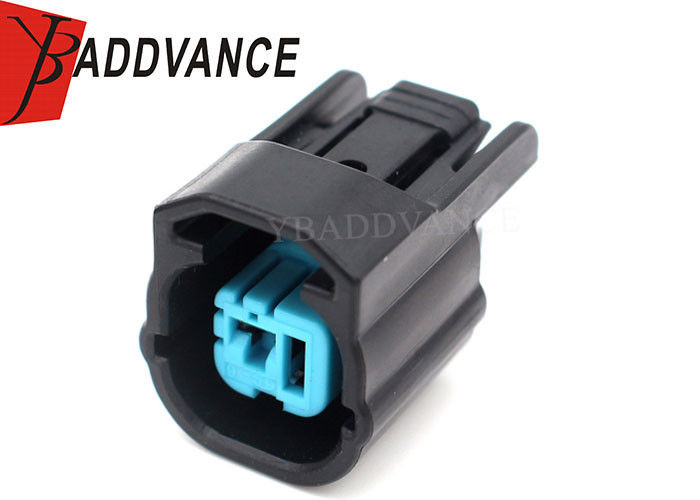

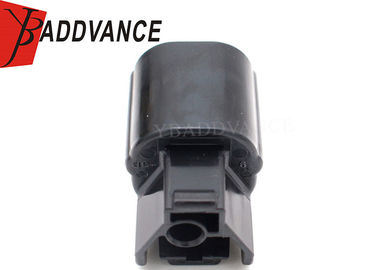

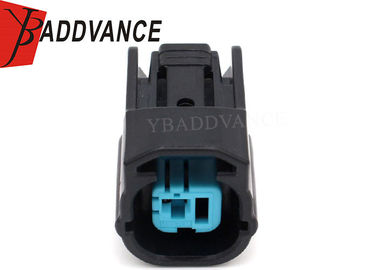

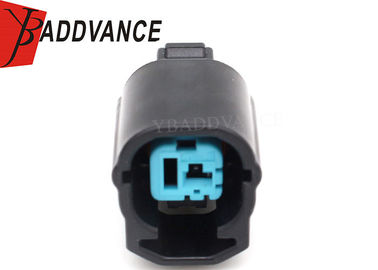

Product Picture Details
