Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
P/N: | DT06-12S | Color: | Grey |
---|---|---|---|
Way: | 12 Hole | Feature: | Waterproof |
Martial: | PBT/PA66 | HS Code: | 8536909000 |
WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
High Light: | deutsch waterproof connectors,te connectivity deutsch connectors |

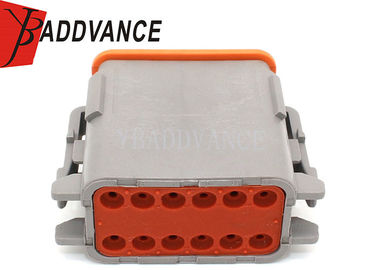

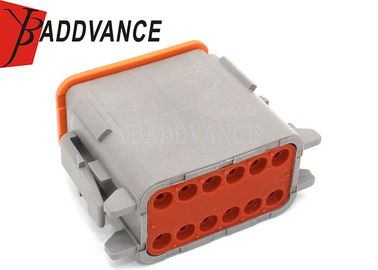

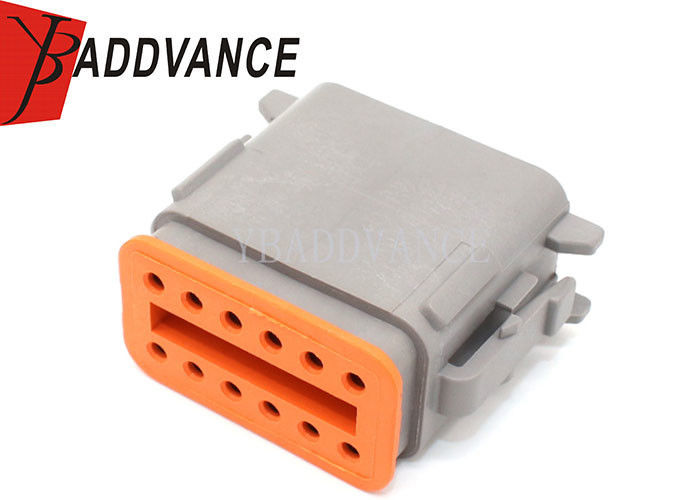

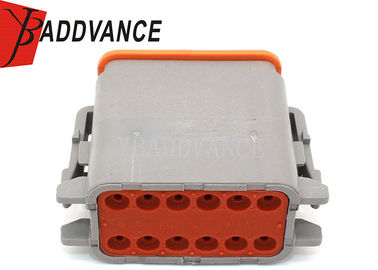

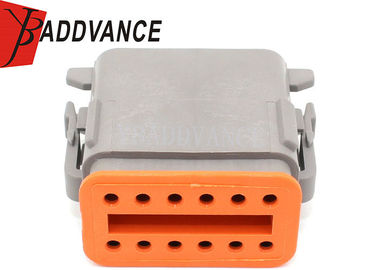

12 Position DT Series Automobile Waterproof Connector DT06-12S
Description
12 Position DT Series Automobile Waterproof Connector
It is a 12-way grey heavy-duty Plug designed for wire-to-circuit board connections.
It is built to maintain the integrity and continuity of data and power signals in harsh environments.
Deutsch PCB connectors are sealed, reliable and easy to install.
Centerline (Pitch) :4.5 mm
Series : DT-Series
Configuration : 12 Way Plug Housing + 1 Wedgelock+12 Terminals +12 Wire Seals
Material : Thermoplastic Housing / Silicone Rubber Grommet
Amperage : 13 Amp Continuous Capacity per Contact
Temperature : -55°C to 105°C

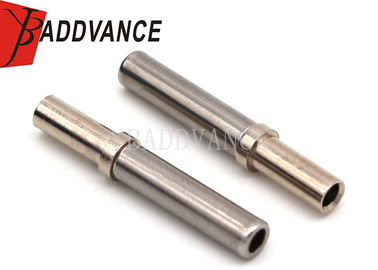

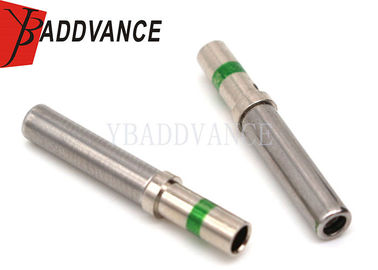

The connector may be populated with either solid or stamped & formed style contacts. Contact insertion and removal does not require any special tools.
The Deutsch DT Series general purpose connectors will provide reliability and performance on the engine or transmission,under the bonnet, on the chassis, or in the cab.
DEUTSCH is part of the family brands of TE
DEUTSCH connectors are also leaders in autosport and motosport applications.
Specification
Item name |
12 Position DT Series Automobile Waterproof Connector DT06-12S |
P/N | DT06-12S |
Wire Size |
18-22AWG |
Operating Temperature range |
-40℃~125℃ |
Insulation resistance |
100M Min. |
MOQ |
100 units/lot |
Key words |
12 pin Deutsch Connector |
Design Tooling |
Sending us samples or drawing to design it |
Delivery Time |
About 5-8 work days |
Sealed/Unsealed |
sealed |
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
The number of hole | 12 way |
Color | Grey |
Warranty | 1 year |
Application | Automoive Motorcycles |
Product Picture Details
