Home ProductsDeutsch Automotive Connectors

Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

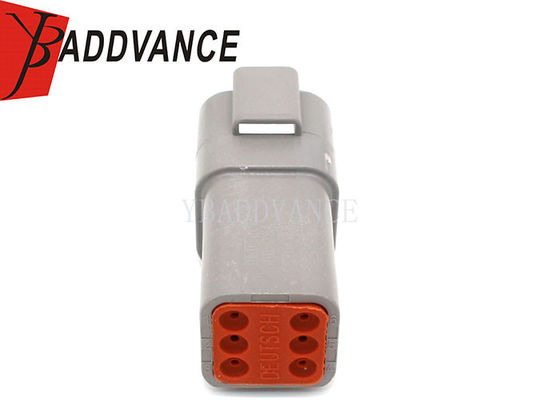

Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P

Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P
Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P

Large Image :  Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: DT04-6P

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Color: Grey P/N: DT04-6P
Type: Deutsch Connector Gender: Female
Way: 6 Hole Feature: Waterproof
Martial: PBT/PA66 HS Code: 8536909000
High Light:

deutsch waterproof connectors

,

te connectivity deutsch connectors

Amphenol Deutsch AT-DT Connectors 6 Pin Male Rectangular DT Series Connector DT04-6P







Description



6 Pin Male Gray Rectangular DT Series Sealed Connector

DEUTSCH DT Series environmentally sealed electrical connectors are for critical applications and are designed to withstand the harshest and most challenging environments.

Mating Parts: DT06-6S

Centerline (Pitch) :4.5 mm

Model: Deutsch DT series

Required Wedgelock: W6P
Shape: Rectangular

DEUTSCH DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 DEUTSCH contacts, each with 13-amp continuous capacity.

For the DT Seriese male connector , we have 3 types terminals , please check the above pictures

We have the black color for the same type , if you need it , please contact us







Specification



Item name

6 Pin Male Gray Rectangular DT Series Sealed Connector DT04-6P
P/N DT04-6P

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

6 pin Deutsch Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  6 way
Color  Grey
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details



Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P 0

Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P 1
