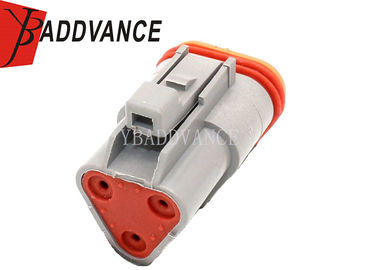

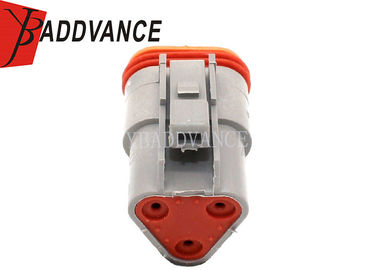

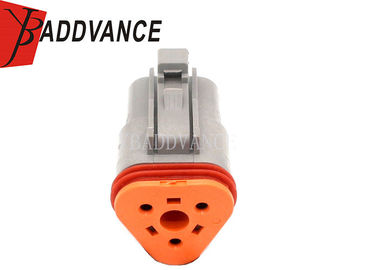

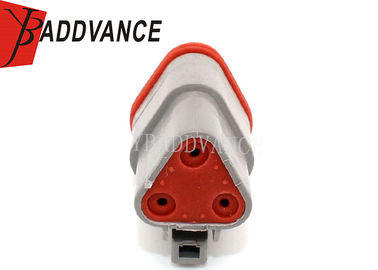

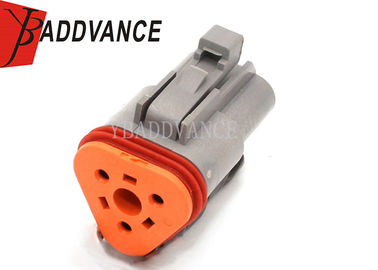

DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car / Bus / Truck

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car / Bus / Truck

DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car /  Bus / Truck
DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car /  Bus / Truck DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car /  Bus / Truck DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car /  Bus / Truck DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car /  Bus / Truck DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car /  Bus / Truck DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car /  Bus / Truck DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car /  Bus / Truck

Large Image :  DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car / Bus / Truck

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: DT06-3S

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
P/N: DT06-3S Type: Deutsch Connector
Gender: Female Way: 3 Hole
Feature: Waterproof Martial: PBT/PA66
HS Code: 8536909000 WARRANTY: 1 Year
PLACE OF ORIGIN: Shaanxi,China
High Light:

deutsch waterproof connectors

,

te connectivity deutsch connectors

3 Pin DT Series Engine Gearbox Connector For Car/Bus/Truck/Boats DT06-3S







Description



3 Pin DT Series Engine Gearbox Connector For Car/Bus/Truck/Boats

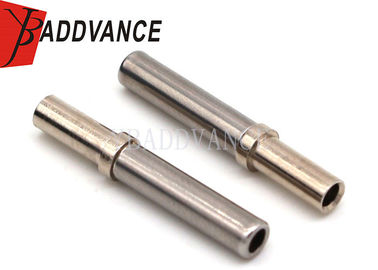

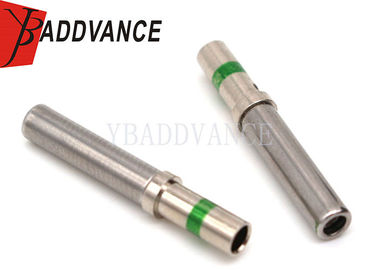

For the DT Seriese female connector , we have 2 types terminals , please check the above pictures

We have the black color for the same type , if you need it , please contact us

Mating Parts: DT04-3P

Centerline (Pitch) : 8.7 mm

Shape : Triangular

Car Make: Truck,B MW,B enz etc.
Model: Deutsch DT series
Type: Wheel Speed Sensor DT Series environmentally sealed connectors are designed specifically for cable to cable applications.
The connectors are used in harsh environment applications where even a small degradation in connection may be critical.

DEUTSCH DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 DEUTSCH contacts, each with 13-amp continuous capacity.







Specification



Item name

3 Pin DT Series Engine Gearbox Connector For Car/Bus/Truck/Boats DT06-3S
P/N DT06-3S

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

3 pin Deutsch Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  3 way
Color  Grey
Warranty 1 year
Application Automoive Motorcycles







Product Picture Details



DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car /  Bus / Truck 0

DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car /  Bus / Truck 1

DT06-3S Deutsch 3 Pin Connector , Deutsch Waterproof Connectors For Car /  Bus / Truck 2
