3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive

3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive
3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive 3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive 3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive 3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive 3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive 3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive 3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive

Large Image :  3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: DT04-3P

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
  • Product Details
Detailed Product Description
P/N: DT04-3P Type: Male Deutsch Connector
Gender: Male Way: 3 Hole
Feature: Waterproof Martial: PBT/PA66
HS Code: 8536909000 PLACE OF ORIGIN: Shaanxi,China
High Light:

deutsch dt series connectors

,

te connectivity deutsch connectors

3 Way Male Waterproof Deutsch DT Series Housing Connector DT04-3P







Description

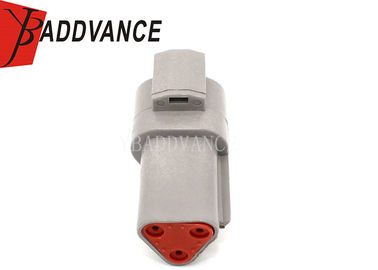

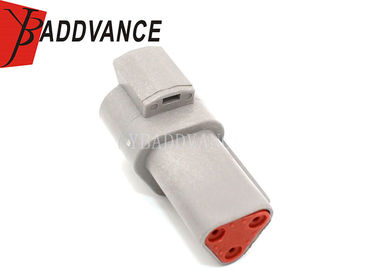

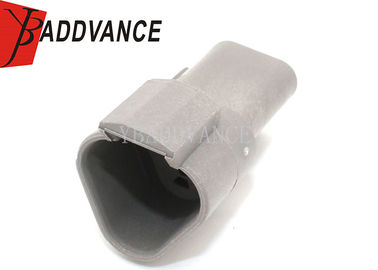

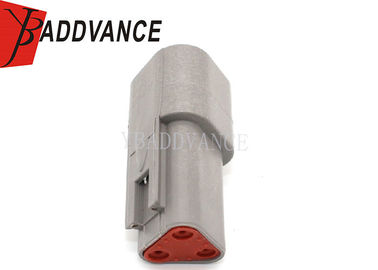

3 Way Male Waterproof Deutsch DT Series Housing Connector

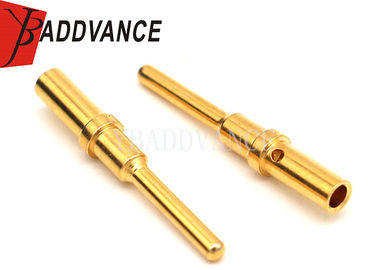

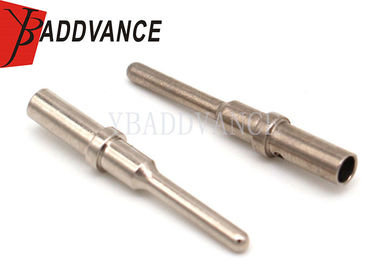

For the DT Seriese male connector , we have 3 types terminals , please check the above pictures

Mating Parts: DT06-3S

Shape : Triangular

Required Wedgelock: W3P

Item Weight: 0.16 ounces

Material: connector: PA66; terminal: brass/phosphor copper .
Configuration : 3 Way Housing +1 Wedgelock+3 terminal+3 Wire seals

DEUTSCH DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 DEUTSCH contacts, each with 13-amp continuous capacity.





Specification



Item name

3 Way Male Waterproof Deutsch DT Series Housing Connector DT04-3P
P/N DT04-3P

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

3 pin Deutsch Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  3 way
Color  Grey
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details



3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive 0

3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive 1

3 Way Male Deutsch DTM Series Connectors Waterproof DT04-3P For Automotive 2
