ATM Series 8 Way Kit Deutsch Connector DTM 8 Pin Male Female Connector DTM06-8S DTM04-8P

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

ATM Series 8 Way Kit Deutsch Connector DTM 8 Pin Male Female Connector DTM06-8S DTM04-8P

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  ATM Series 8 Way Kit Deutsch Connector DTM 8 Pin Male Female Connector DTM06-8S DTM04-8P

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: DTM06-8S DTM04-8P

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into Ziplock bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Color: Gray P/N: DTM06-8S DTM04-8P
Type: Deutsch Connector Gender: Male+female
Feature: Waterproof Way: 8 Pin
Material: Nylon GF 20 HS Code: 8536909000
AMP: 7.5A Wire Range: 20-22AWG
High Light:

deutsch waterproof connectors

,

te connectivity deutsch connectors

ATM Series 8 Way Kit Deutsch Connector DTM 8 Pin Male Female Connector DTM06-8S DTM04-8P







Description



YBADDVANCE are a direct replacement for the extensively used Deutsch DTM series.We designed this kinds of connector from 2 pin,3 pin,4 pin,6 pin,8 pin and 12 pin.

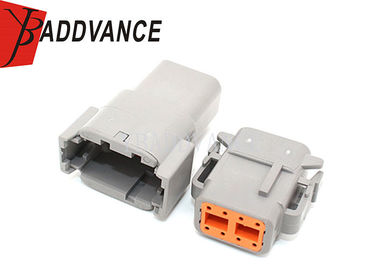

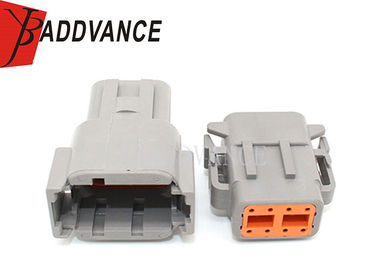

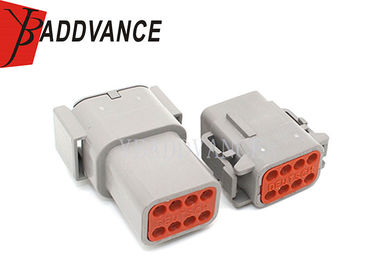

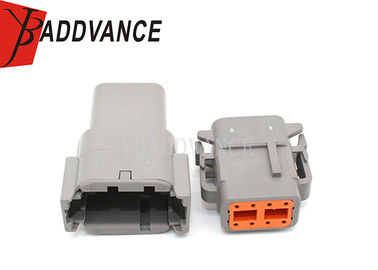

The following will show 8 pin male and female come with the assembly kits.



Female:

Includes DTM Series Wedge Lock(WM-8S)

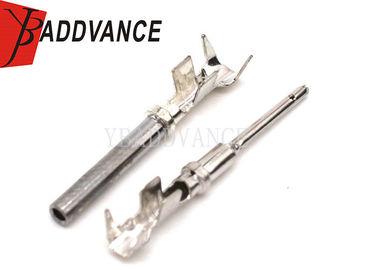

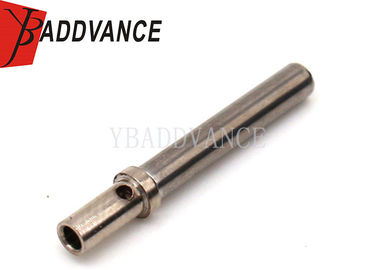

Includes 8 Mini Female Sockets(0462-201-20141) Or (1062-20-0222)



​Male:

Includes DTM Series Wedge Lock(WM-8P)

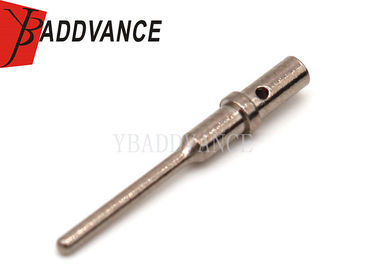

Includes 8 Mini male Sockets 1060-20-0122













Specification



Item name

DTM 8 Pin Male Female Connector
P/N DTM04-8P  DTM06-8S

Wire Size

20-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

8 Pin dtm male and female connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  8 way
Color  Gray
Warranty 1 year
Application Industrial









Product Picture Details



ATM Series 8 Way Kit Deutsch Connector DTM 8 Pin Male Female Connector DTM06-8S DTM04-8P 0

ATM Series 8 Way Kit Deutsch Connector DTM 8 Pin Male Female Connector DTM06-8S DTM04-8P 1

ATM Series 8 Way Kit Deutsch Connector DTM 8 Pin Male Female Connector DTM06-8S DTM04-8P 2
