Product Details:
Payment & Shipping Terms:
|
| P/N: | DTM06-12S | Color: | Grey |
|---|---|---|---|
| Type: | 12 Pin Deutsch Connector | Gender: | Female |
| Way: | 12 Hole | Feature: | Waterproof |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| High Light: | deutsch waterproof connectors,deutsch dt series connectors |
||
12 Pin Female DTM Series Mini Deutsch Connectors DTM06-12S ATM06-12S
Description
12 Hole Female Sealed Grey DTM Series Deutsch Connector
2 Row , 12 way
Series : DTM-Series
Configuration : 12 Way Receptacle Housing + 1 Wedgelock+12 terminals +12 wire seals
Wire Range : 20-16 Awg
Material : Thermoplastic Housing / Silicone Rubber Grommet
Amperage : 7.5 Amp Continuous Capacity per Contact
Temperature Range: -55°C to 105°C
Height : 15.24mm
Width: 40.01mm
Length : 1.185 in
The DTM connector housing is used in harsh environment applications where even a small degradation in connection may be critical.
The DTM connector line was developed to fill the need for lower amperage, multi-pin connectors.
Contact insertion and removal does not require any special tools.
Specification
|
Item name |
12 Hole Female Sealed Grey DTM Series Deutsch Connector DTM06-12S |
| P/N | DTM06-12S |
|
Wire Size |
20-22AWG |
|
Operating Temperature range |
-55℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
12 pin Deutsch Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 12 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

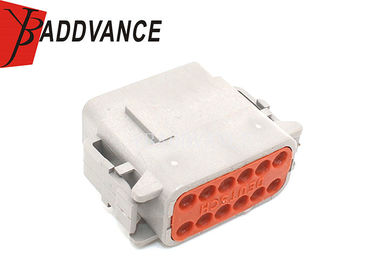

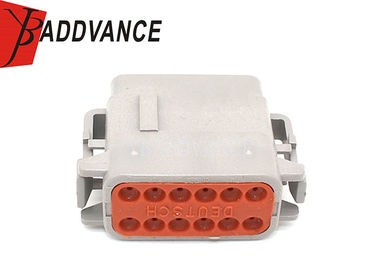

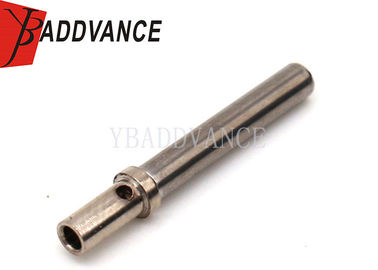

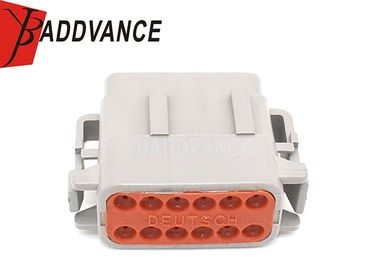

Product Picture Details
