Product Details:
Payment & Shipping Terms:
|
| Color: | Grey | P/N: | DTM04-6P |
|---|---|---|---|
| Type: | 6 Pin Deutsch Connector | Gender: | Male |
| Feature: | Waterproof | Way: | 6 Hole |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| PLACE OF ORIGIN: | Shaanxi,China | ||
| High Light: | deutsch waterproof connectors,deutsch dt series connectors |
||
6 Position Male Deutsch DTM TE Connectivity Connector DTM04-6P
Description
6 Position Male Deutsch DTM TE Connectivity Connector
DEUTSCH DTM housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 20 DEUTSCH contacts
It is a 6-way environmentally sealed Connector Housing designed specifically for cable to cable applications.
The DTM connector housing is used in harsh environment applications where even a small degradation in connection may be critical.
The DTM connector line was developed to fill the need for lower amperage, multi-pin, inexpensive connectors.

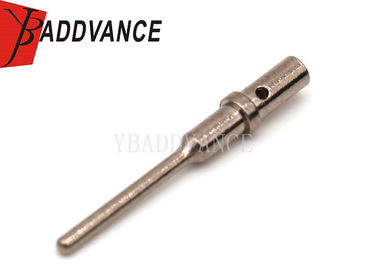

The DTM Series offers the designer the ability to use multiple size 20 contacts, each with 7.5 amp continuous capacity, within a single shell.
Material : Thermoplastic Housing / Silicone Rubber Grommet
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
6 Position Male Deutsch DTM TE Connectivity Connector DTM04-6P |
| P/N | DTM04-6P |
|
Wire Size |
20-22AWG |
|
Operating Temperature range |
-55℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Deutsch Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automtoive Motorcycles |

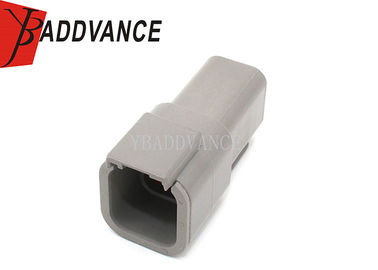

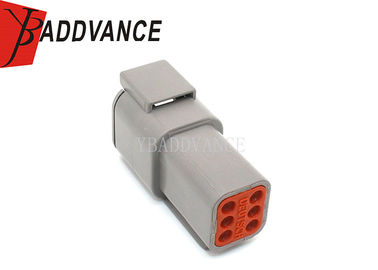

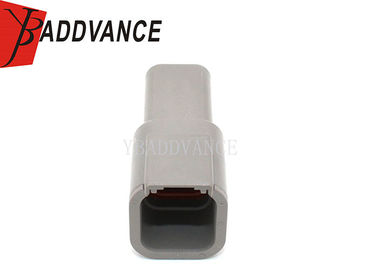

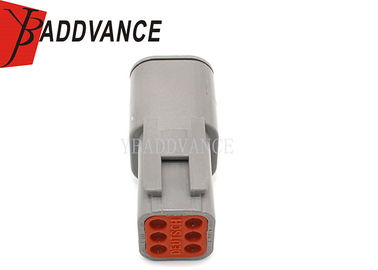

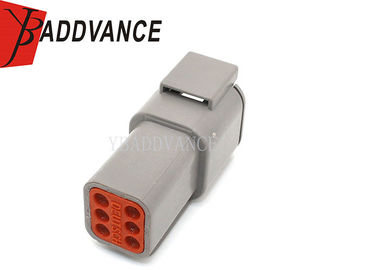

Product Picture Details
