Product Details:
Payment & Shipping Terms:
|
| Color: | Grey | P/N: | DTM04-3P |
|---|---|---|---|
| Type: | Deutsch Connector | Gender: | Male |
| Feature: | Waterproof | Way: | 3 Hole |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| Highlight: | deutsch waterproof connectors,deutsch dt series connectors |
||
3 Pin Male DTM Housing Connector with Wedgelock and Terminals DTM04-3P
Description
3 Pin Male DTM Housing Connector with Wedgelock and Terminals
1 row , 3 way
Height: 16.21 mm
Length: 1.62 inch
Width: 20.73mm
The connectors have a maximum current capacity of 7.5 Amps and a temperature range of -55°C -125°C.
Series : DTM Series
Configuration : 3 Way Housing + Wedgelock＋3 terminal+3 Wire seals
Wire Range : -20-16 Awg
Material : Thermoplastic Housing / Silicone Rubber Grommet
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
3 Pin Male DTM Housing Connector with Wedgelock and Terminals DTM04-3P |
| P/N | DTM04-3P |
|
Wire Size |
20-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Deutsch Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

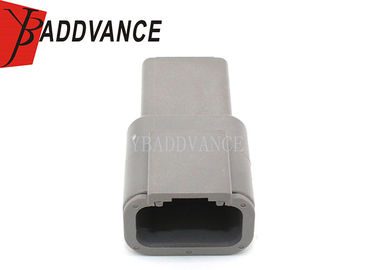

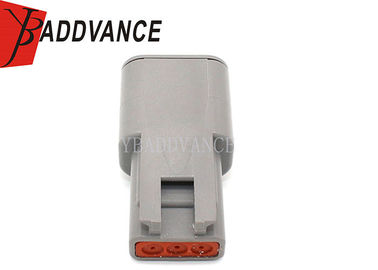

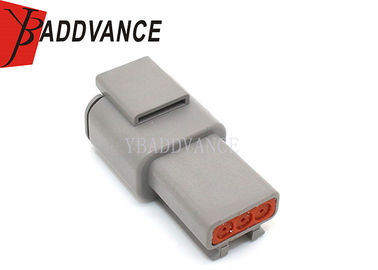

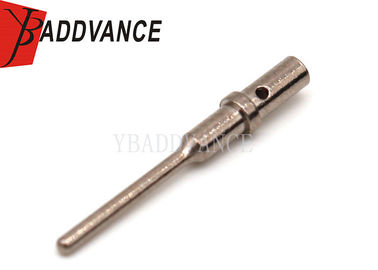

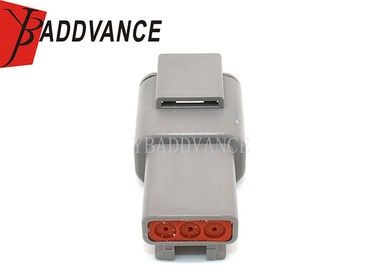

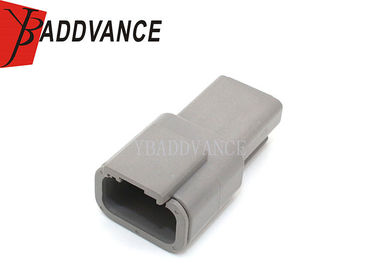

Product Picture Details
