Home ProductsWeather Pack Connector

12160482 Metri-Pack 150 Series 4 Pin Connector for Gm

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

12160482 Metri-Pack 150 Series 4 Pin Connector for Gm

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  12160482 Metri-Pack 150 Series 4 Pin Connector for Gm

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 12160482

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into Ziplock bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
P/N: 12160482 Way: 4 Pin
Martial: PBT/PA66 Feature: Waterproof
Type: Sealed Connector Color: Black
WARRANTY: 1 Year HS Code: 8536909000
Gender: Female PLACE OF ORIGIN: Shaanxi,China
High Light:

metri pack connector

,

weather pack electrical connectors

12160482 Metri-Pack 150 Series 4 Pin Connector for Gm







Description



Metri-Pack 150 Series 4 Pin Connector for Gm

These are connectors belong to D elphi

Application : Sensor - Exhaust Oxygen

Series : Metri-Pack 150 Series

Height :31.6mm
Width: 19.5mm
Length: 30.5mm

This set includes and you will get: : 1 housing +4  terminals+4 Seals

Housing: PBT+GF,PA66+GF;
Terminal: Copper Alloy/Brass/Phosphor Bronze.
Seal: Silicon Rubber

We can make the wire harness if you need it

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

High quality with reasonable price ,If you need more, please contact with us to get cheaper price.









Specification



Item name

12160482 Metri-Pack 150 Series 4 Pin Connector for Gm
P/N 12160482

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

4 pin Sealed Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  4 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

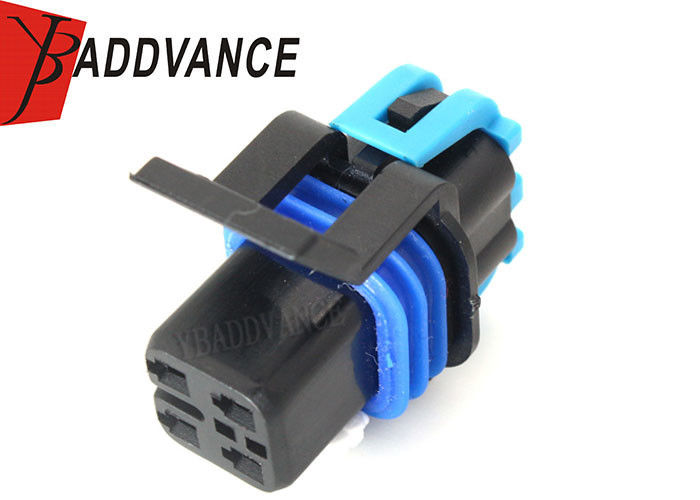

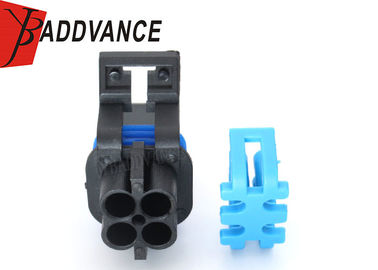

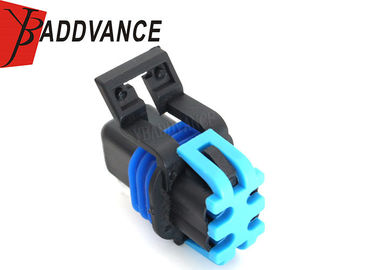

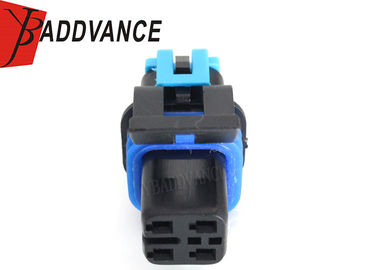

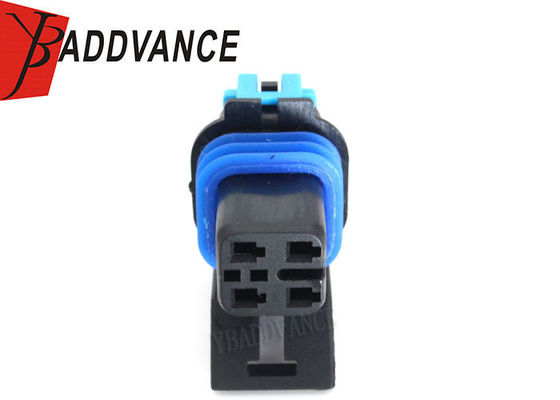

12160482 Metri-Pack 150 Series 4 Pin Connector for Gm  0

12160482 Metri-Pack 150 Series 4 Pin Connector for Gm  1

12160482 Metri-Pack 150 Series 4 Pin Connector for Gm  2
