Product Details:
Payment & Shipping Terms:
|
| P/N: | 3B0972732 3B0 972 732 | Way: | 4 Pin |
|---|---|---|---|
| Martial: | PBT/PA66 | Feature: | Waterproof |
| Type: | Sealed Connector | Color: | Black |
| WARRANTY: | 1 Year | HS Code: | 8536909000 |
| Gender: | Female | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | automotive headlight connectors,headlight plug connector |
||

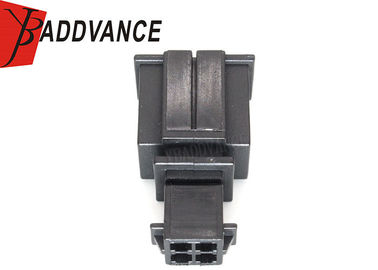

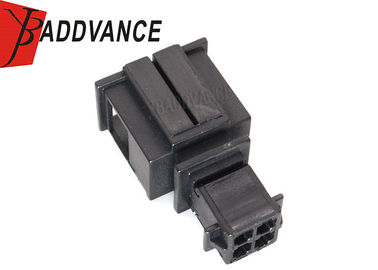

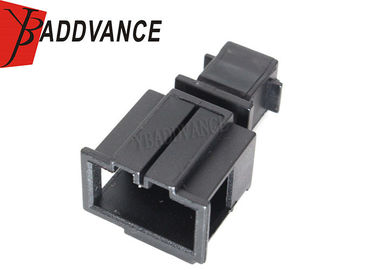

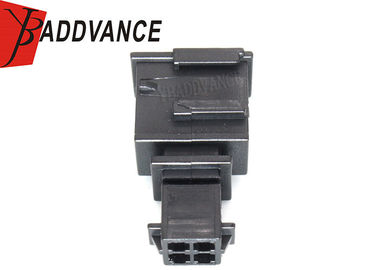

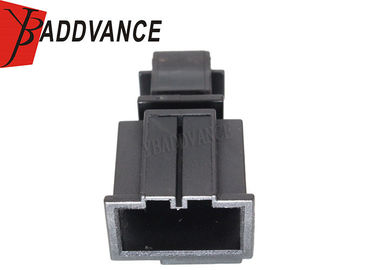

3B0972732 3B0 972 732 4 Way Male Connector for AUDI VW Skoda VAG
Description
3B0972732 3B0 972 732 4 Way Male Connector for AUDI VW Skoda VAG
These Connector used for V W,A udi , S koda seat, other VAG group cars
Lenght :32 mm
Width :25mm
Height :25mm
Including : 1 housing +4 terminals
We can make the wire harness if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality with reasonable price ,If you need more, please contact with us to get cheaper price.
Specification
|
Item name |
3B0972732 3B0 972 732 4 Way Male Connector for AUDI VW Skoda VAG |
| P/N | 3B0972732 3B0 972 732 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
