Product Details:
Payment & Shipping Terms:
|
| P/N: | BC7041-1.8-21 | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | Gender: | Female |
| Feature: | Waterproof | Type: | Sealed Connector |
| HS Code: | 8536909000 | Way: | 4 Hole |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | automotive waterproof electrical connectors,maf sensor connector |
||

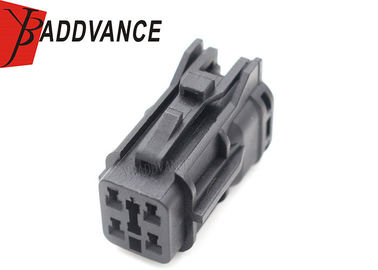

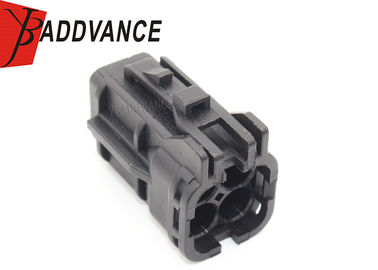

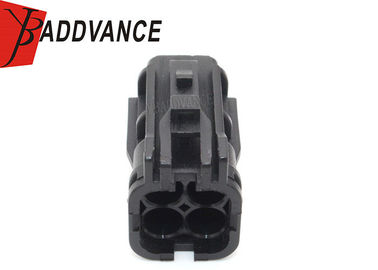

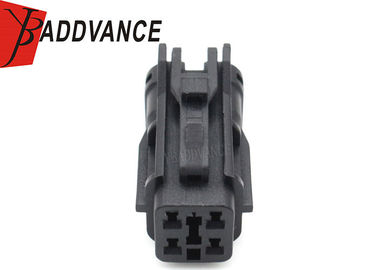

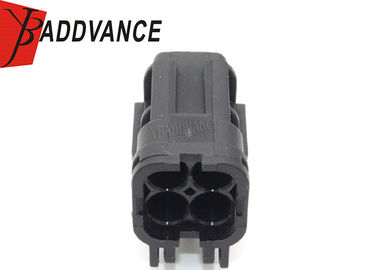

4 Pin Female Electrical Waterproof Connector For Japanese Car 7123-7444-40
Description
4 Pin Female Electrical Waterproof Connector For Japanese Car
2 Row ,4 Way
Mating Connector : BC7041-1.8-11
If you need male and female connector , it will be more cost effective
YBADDVANCE provide the black 4 pin Connector with high quality,high quality items at very reasonable price
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Inclduing :1 housing +4 terminals +4 seals+1 Lock
Excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
4 Pin Female Electrical Waterproof Connector For Japanese Car |
| P/N | BC7041-1.8-21 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
Product Picture Details
