2 Pin Female Metri Pack Connector , EV1 Injector Connector 12129142 12129140

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

2 Pin Female Metri Pack Connector , EV1 Injector Connector 12129142 12129140

2 Pin Female Metri Pack Connector , EV1 Injector Connector 12129142 12129140
2 Pin Female Metri Pack Connector , EV1 Injector Connector 12129142 12129140 2 Pin Female Metri Pack Connector , EV1 Injector Connector 12129142 12129140 2 Pin Female Metri Pack Connector , EV1 Injector Connector 12129142 12129140 2 Pin Female Metri Pack Connector , EV1 Injector Connector 12129142 12129140 2 Pin Female Metri Pack Connector , EV1 Injector Connector 12129142 12129140

Large Image :  2 Pin Female Metri Pack Connector , EV1 Injector Connector 12129142 12129140

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 12129142 12129140

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
  • Product Details
Detailed Product Description
Color: Black Martial: PBT/PA66
P/N: 12129142 12129140 HS Code: 8536909000
Type: Fuel Injector Connector EV1 WARRANTY: 1 Year
Way: 2 Hole Feature: Waterproof
Gender: Female PLACE OF ORIGIN: Shaanxi,China
High Light:

fuel injector plug

,

fuel injector adapter

2 Pin Female Metri-Pack Fuel Injector EV1 Connector Plug 12129142 12129140





Description



2 Way Femle Metri-Pack EV1 Fuel Injector Connectors

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

Contact resistance :Initial 3mΩ Max.
after durability 10mΩ Max.
Leak current : 100μA Max.
Insulation resistance: 100MΩ Min.

The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.

We can make the wire if you need it

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These connectors come with the terminals and seals

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance









Specification



Item name

2 Way Female Metri-Pack EV 1 Fuel ||Injector Connectors 12129142
P/N 12129142 12129140

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

2 pin sealed Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  2 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

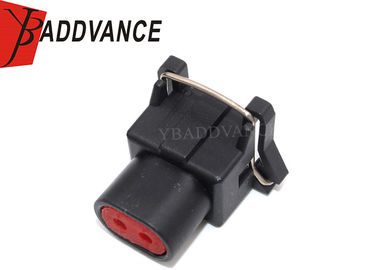

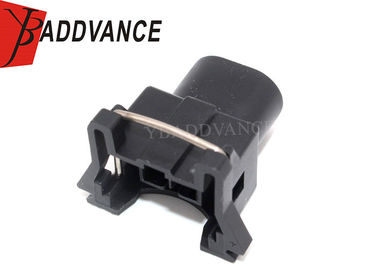

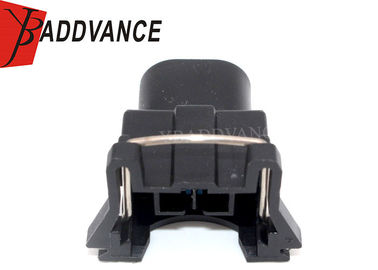

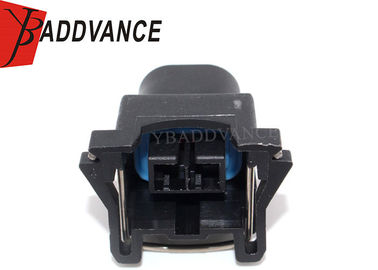

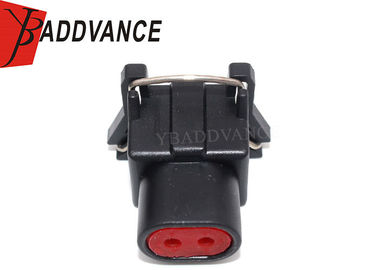

2 Pin Female Metri Pack Connector , EV1 Injector Connector 12129142 12129140 0

2 Pin Female Metri Pack Connector , EV1 Injector Connector 12129142 12129140 1

2 Pin Female Metri Pack Connector , EV1 Injector Connector 12129142 12129140 2
