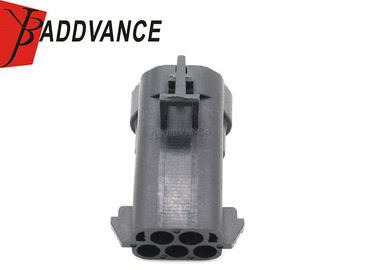

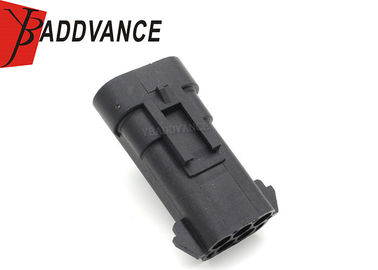

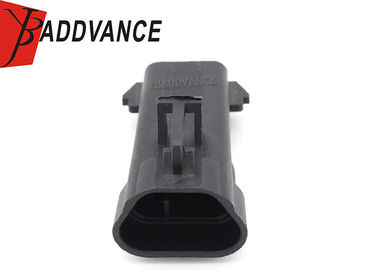

5 Way Male Metri-Pack 280 Sealed Oxygen Sensor Connectors 12103974

5 Way Male Metri-Pack 280 Sealed Oxygen Sensor Connectors 12103974
5 Way Male Metri-Pack 280 Sealed Oxygen Sensor Connectors 12103974 5 Way Male Metri-Pack 280 Sealed Oxygen Sensor Connectors 12103974 5 Way Male Metri-Pack 280 Sealed Oxygen Sensor Connectors 12103974 5 Way Male Metri-Pack 280 Sealed Oxygen Sensor Connectors 12103974

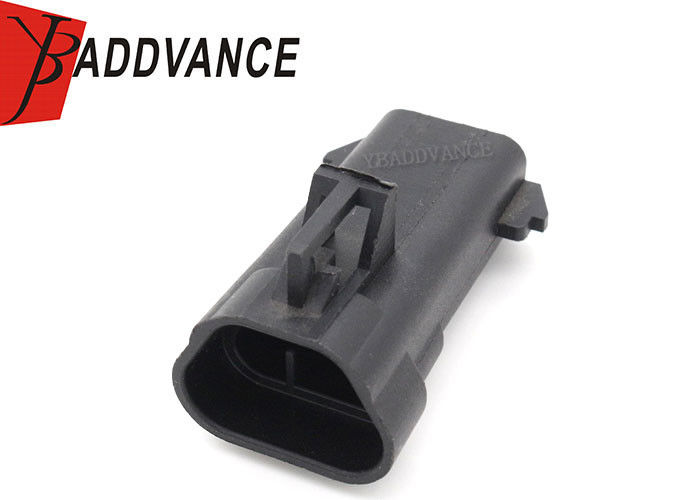

Large Image :  5 Way Male Metri-Pack 280 Sealed Oxygen Sensor Connectors 12103974

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 12103974

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Color: Black Martial: PBT/PA66
P/N: 12103974 WARRANTY: 1 Year
HS Code: 8536909000 Gender: Male
Type: Sealed Connector Feature: Waterproof
Way: 5 Hole PLACE OF ORIGIN: Shaanxi,China
High Light:

metri pack connector

,

weather pack electrical connectors

5 Way Male Metri-Pack 280 Sealed Oxygen Sensor Connectors 12103974​





Description



5 Way Male Metri-Pack 280 Series Sealed Oxygen Sensor Connectors

Metri-Pack 280 sealed connectors with triple rib silicone rubber seals for environmental protection and a standard ISO 2.8mm configuration.

Metri-Pack 280 sealed connectors have a low energy, low voltage capability, a maximum continuous current of 30 A.

Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

We can make the wire if you need it

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These connectors come with the terminals and seals

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance









Specification



Item name

5 Way Male Metri-Pack 280 Sealed Oxygen Sensor Connectors 12103974
P/N 12103974

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

5 pin sealed Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  5 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details



5 Way Male Metri-Pack 280 Sealed Oxygen Sensor Connectors 12103974 0

5 Way Male Metri-Pack 280 Sealed Oxygen Sensor Connectors 12103974 1
