Product Details:
Payment & Shipping Terms:
|
| Color: | Black | P/N: | 6189-0126 |
|---|---|---|---|
| Martial: | PBT/PA66 | Feature: | Waterproof |
| Type: | Sumitomo Connector | HS Code: | 8536909000 |
| Way: | 4 Hole | Gender: | Female |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | sumitomo 2 pin connector,sumitomo terminal connector |
||
4 Way Female TS 090 Series Sumitomo Sealed Connector 6189-0126
Description
4 Way Female TS 090 Series Sumitomo Sealed Connector 6189-0126
Height: 30.1 mm
Width : 25.6 mm
Length : 30 mm
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
These connectors come with the terminals and seals
We can make the wire if you need it .
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
4 Way Female TS 090 Series Sumitomo Sealed Connector 6189-0126 |
| P/N | 6189-0126 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

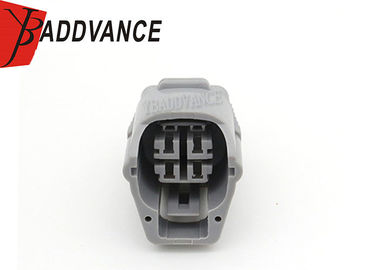

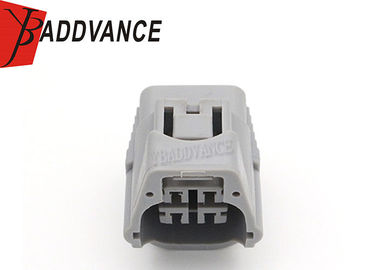

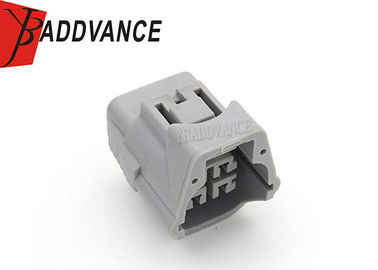

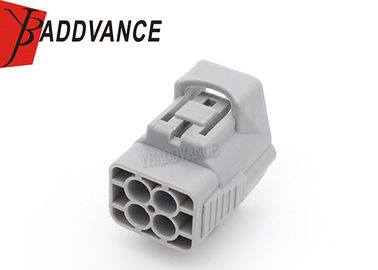

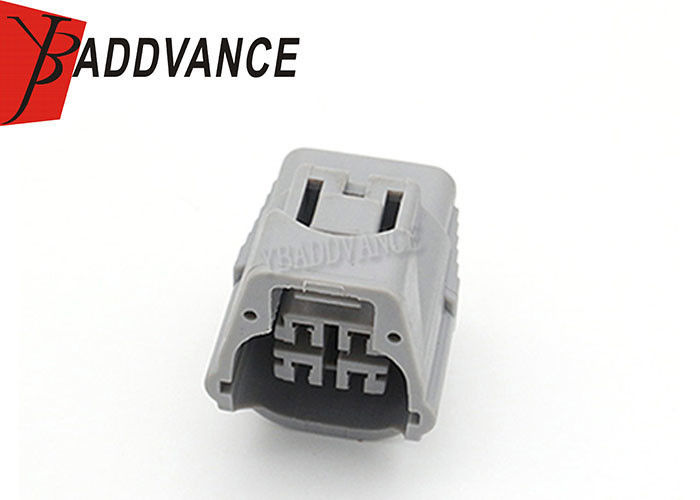

Product Picture Details
