Product Details:
Payment & Shipping Terms:
|
| Keywords: | 6.0 Powerstroke Injector Connector | Number Of Position: | 2 Way |
|---|---|---|---|
| Material: | PBT | Color: | Black And Yellow |
| Sealed/Unsealed: | Sealed | Male/Female: | Female |
| Application: | 7.3L Powerstroke Injectors | Fit For: | Diesel 7.3L & 6.0L / 6.7L Fuel Injector |
| Leak Current: | 100μA Max. | Insulation Resistance: | 100MΩ Min. |
| High Light: | fuel injector plug,fuel injector adapter |
||

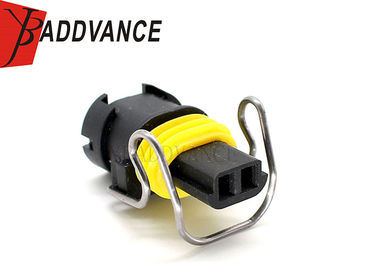

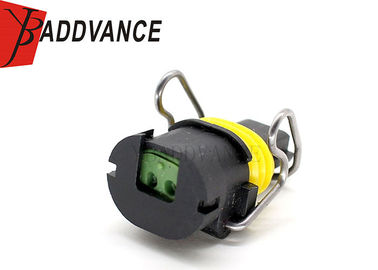

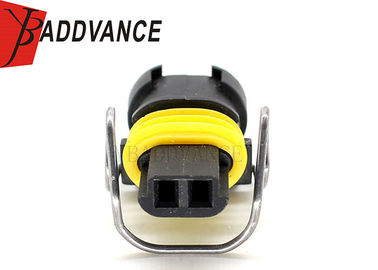

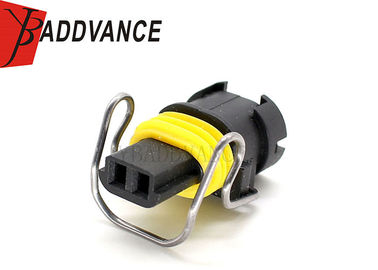

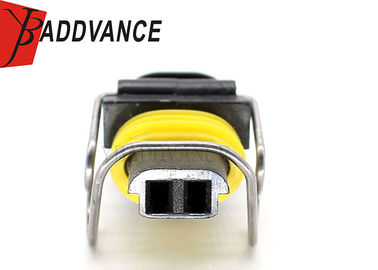

6.0 Powerstroke Injector Connector For 1995.5-2003 Ford Powerstroke 7.3L IPR Valve
Product Description
2 Pin YBADDVANCE connector housing come with pins and seals and the plug for 1995.5-2003 Ford Powerstroke Diesel Engine 7.3L IPR Valve & Injector
Made with High Temperature, cross-linked, polyethylene TXL wire in the correct wire gauge
Fits all IPR valves for the 7.3L & 6.0L
Fits VGT solenoid for 6.0L & 6.7L
Fits all 7.3L Powerstroke Injectors
Specification
| Keywords | 2 Pin diesel injector connector |
| Original Number | BC7023Q-1.5-21 |
| Type | Waterproof sealed connector |
| Male/Female | Female |
| Material | PBT |
| Application | For 6.0 and 7.3 diesel Fuel Injectors |
| Contact resistance |
Initial |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| seal |
Initial |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Black+Yellow |
| Operating Temperature range | -40℃~125℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
